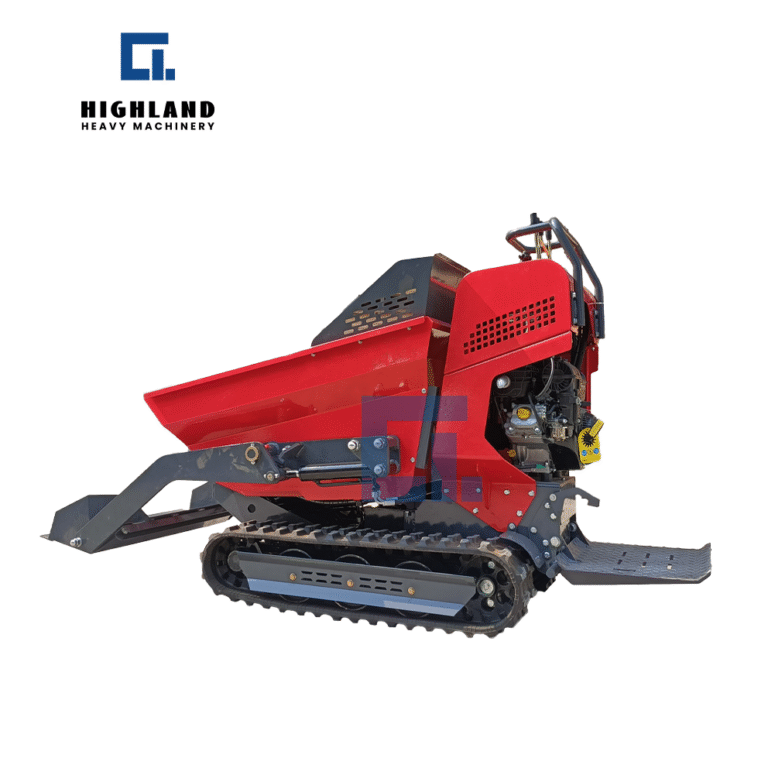

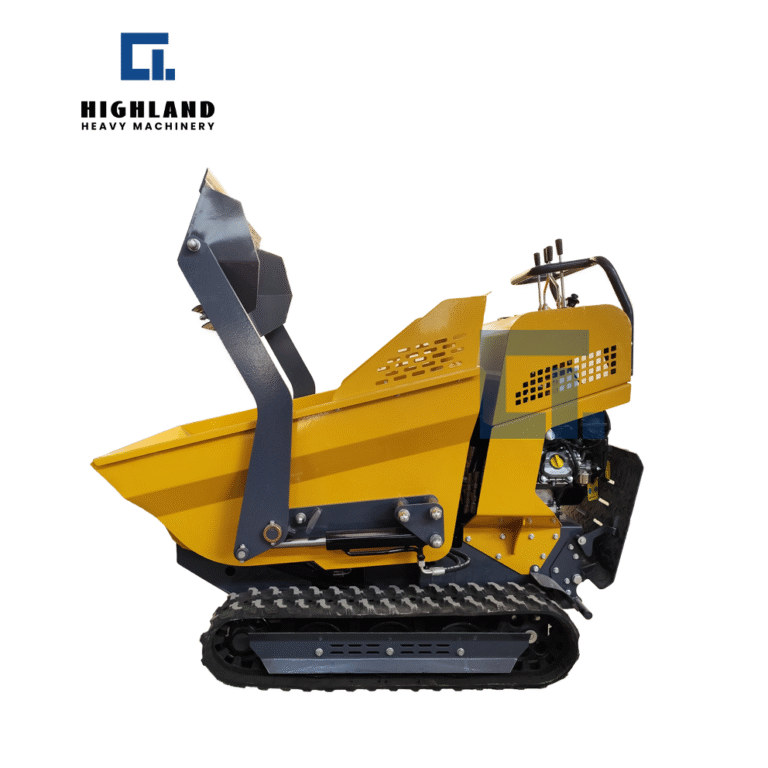

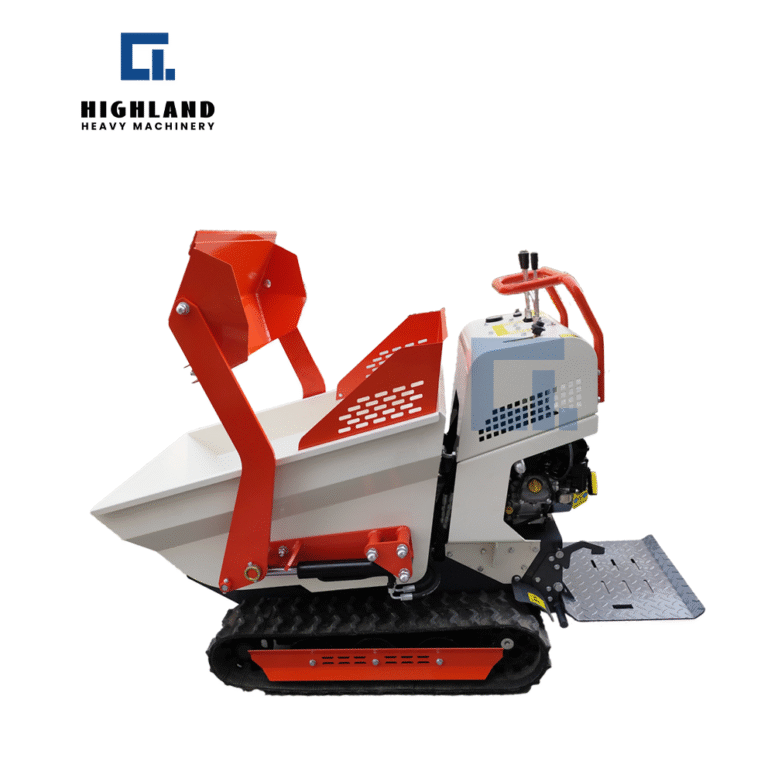

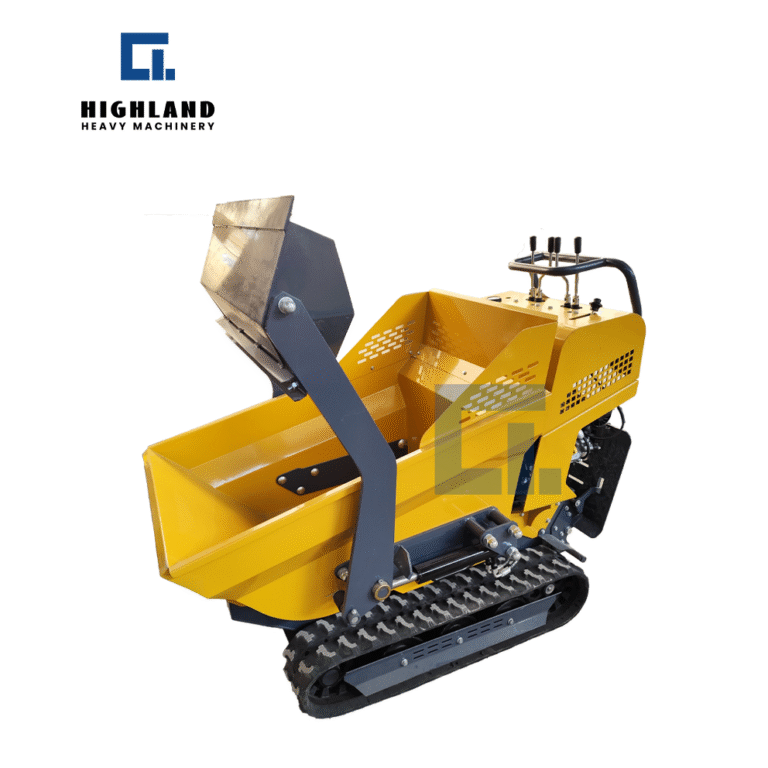

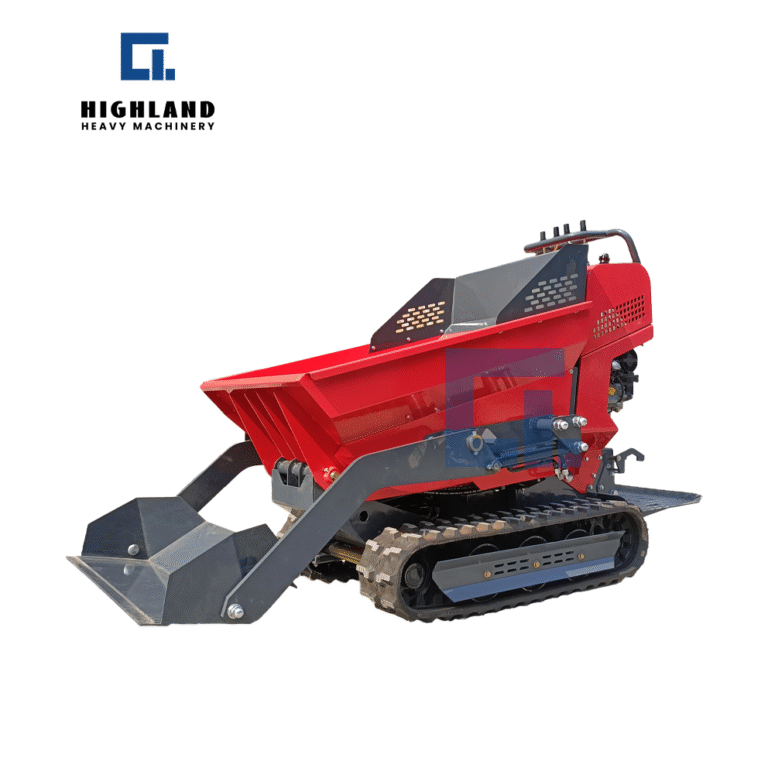

HIF-500 (Self Loading Dumper)

Basic Parameters :

Maximum payload500kg
Container capacity200dm³
Tipping methodHydraulic self-dumping
Tipping angle90°
Walking performance speed2.88km/h
Rated power (kW/rpm)6.5HP/3600rpm
  • Automatic loading and unloading
  • single-person operation
  • High power, suitable for various working conditions


Tracked dump truck: a material transport equipment combining a tracked travel system and a tiltable dump hopper. Mainly used in complex terrains (e.g., muddy, soft, rough ground). Features tracks replacing traditional wheels, reducing ground pressure through a large contact area to minimize bogging risk; enables stable operation in mines, construction sites, farms, marshes, and other areas inaccessible to wheeled vehicles. Hydraulically-driven dump body allows efficient short-distance transport of bulk materials like earth, sand, and crops. Advantages over wheeled models: superior terrain adaptability and traction, ideal for material transfer in harsh environments—a practical tool for engineering, agriculture, and other fields dealing with difficult terrain.

500KG Mini Dumper
Techinical Parameters
Net weight414kg
Maximum payload500kg
Container capacity200dm³
Chassis width700mm
Track width180mm
Track grounding length900mm
Ground clearance of chassis110mm
Tipping methodHydraulic self dumping
Tipping angle90°
Unloading height above ground260mm
Walking performance speed2.88km/h
Minimum turning radius1.15m
Track gauge520mm
Gradeability20°
Engine
ModelRATO 212cc / Briggs & Stratto 19N1 / Koop 173
Power typeSingle cylinder, OHV, 4-stroke, air cooling
Displacement (ML)203CC
Rated power (kW/rpm)6.5HP/3600rpm
Fuel type92# Gasoline
Fuel tank capacity3.6L
Dimensions
Overall dimensions2050*880*1300mm
Container size1050*730*730mm
