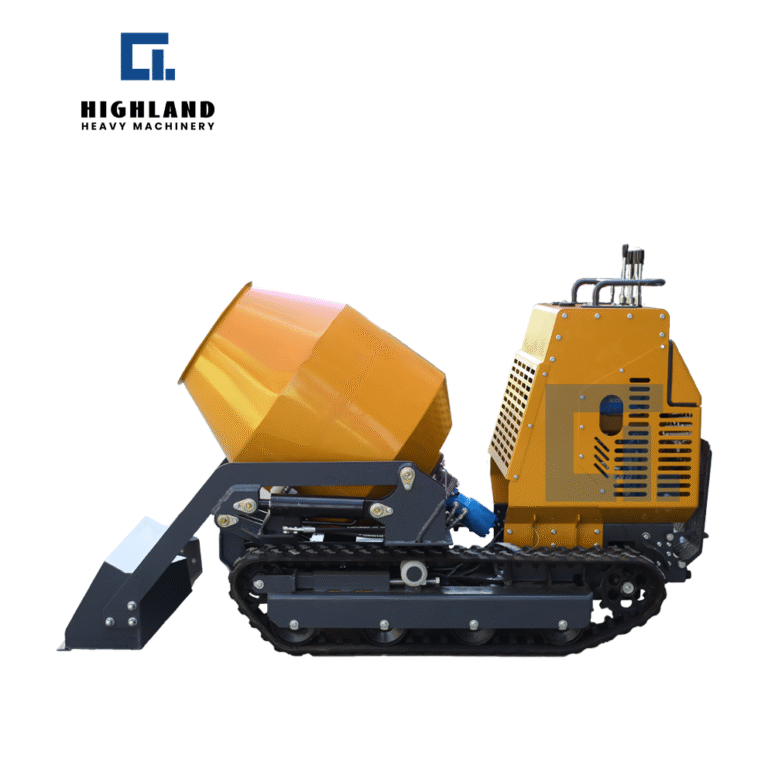

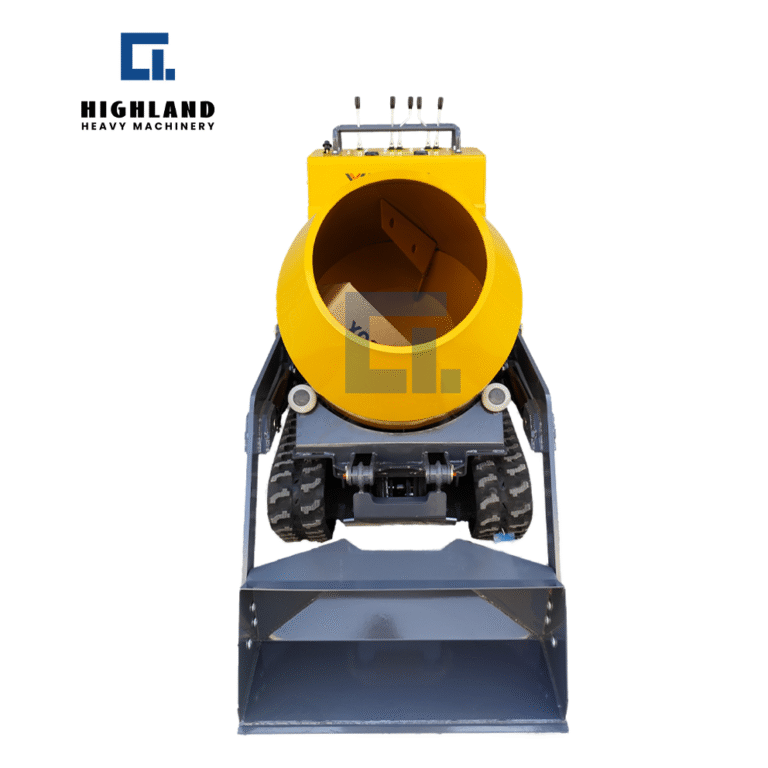

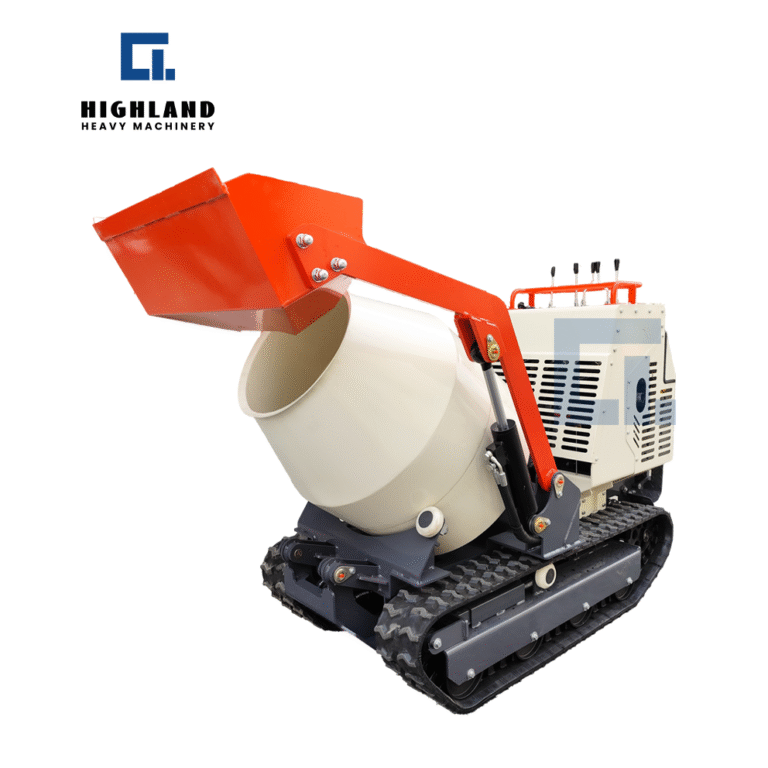

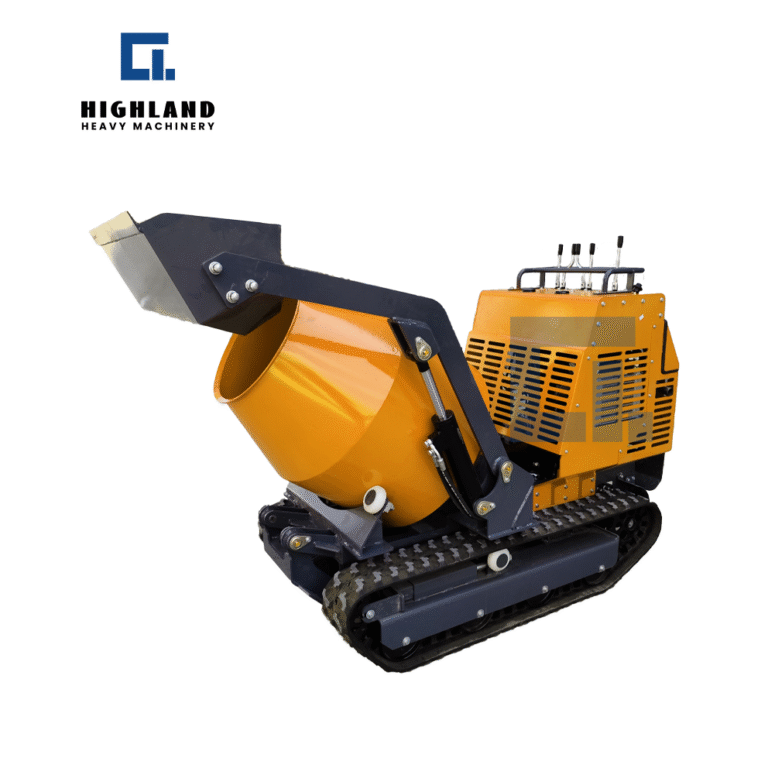

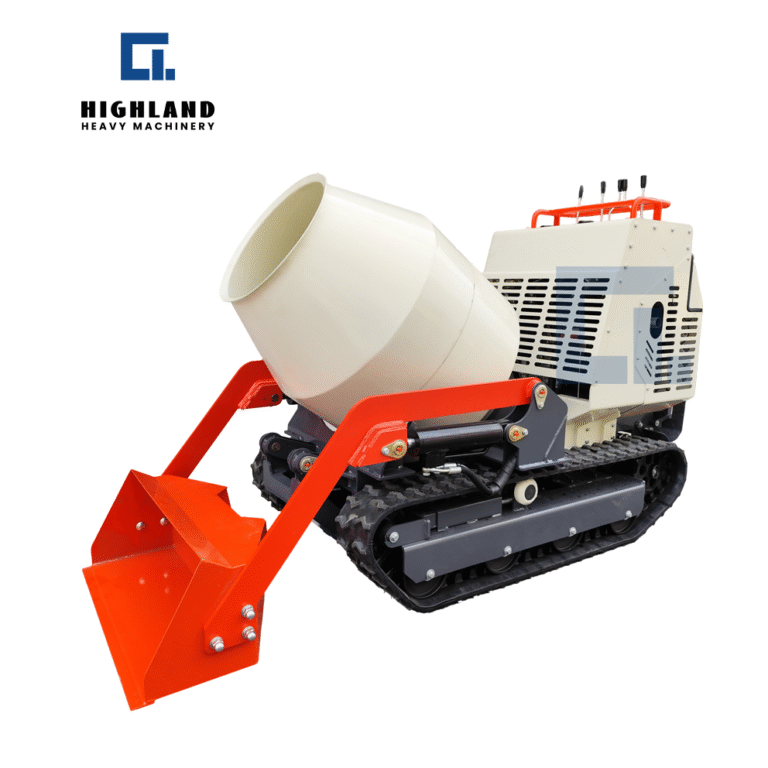

HIF-750 (Mini Self-loading Concrete Mixer )
Basic Parameters :
Maximum payload | 750kg |
Tank volume | 300dm³ |
Tipping angle | 90° |
Speed | 5km/h |
Rated power (kW/rpm) | 13.5HP/3600rpm |
- Automatic feeding, mixing, and discharging
- 90° tilting
- single-person operation
A small tracked concrete mixer is a compact engineering device combining tracked travel and concrete mixing, designed for complex terrain and narrow spaces. Equipped with a mixing drum, it mixes cement, sand, water and other materials, and can quickly transfer between work sites, meeting on-site mixing needs for small projects. Mainly used in small construction, rural house building, mountain road repair, agricultural facility pouring, etc., it suits small/medium projects with complex terrain or limited space, serving as a practical tool balancing mixing function and terrain adaptability.
750KG Small Mixer | |
---|---|
Techinical Parameters | |
Net weight | 750kg |
Maximum payload | 750kg |
Tank volume | 300dm³ |
Chassis width | 850mm |
Track width | 180mm |
Track grounding length | 1000mm |
Ground clearance of chassis | 110mm |
Tipping method | Hydraulic self dumping |
Tipping angle | 90° |
Bucket length | 820mm |
Leakage port length | 300mm |
Leakage port width | 150mm |
Walking performance speed | 5km/h |
Minimum turning radius | 1300mm |
Track gauge | 670mm |
Gradeability | 20° |
Engine | |
Model | RATO 420cc / Briggs & Stratto 25T2 / Koop 192 / Honda GX390 |
Power type | Single cylinder, OHV, 4-stroke, air cooling |
Displacement (ML) | 420CC |
Rated power (kW/rpm) | 13.5HP/3600rpm |
Fuel type | 92# Gasoline |
Fuel tank capacity | 6.5L |
Dimensions | |
Overall dimensions | 2500*900*1500mm |
Tank size | ⌀720*880mm |
