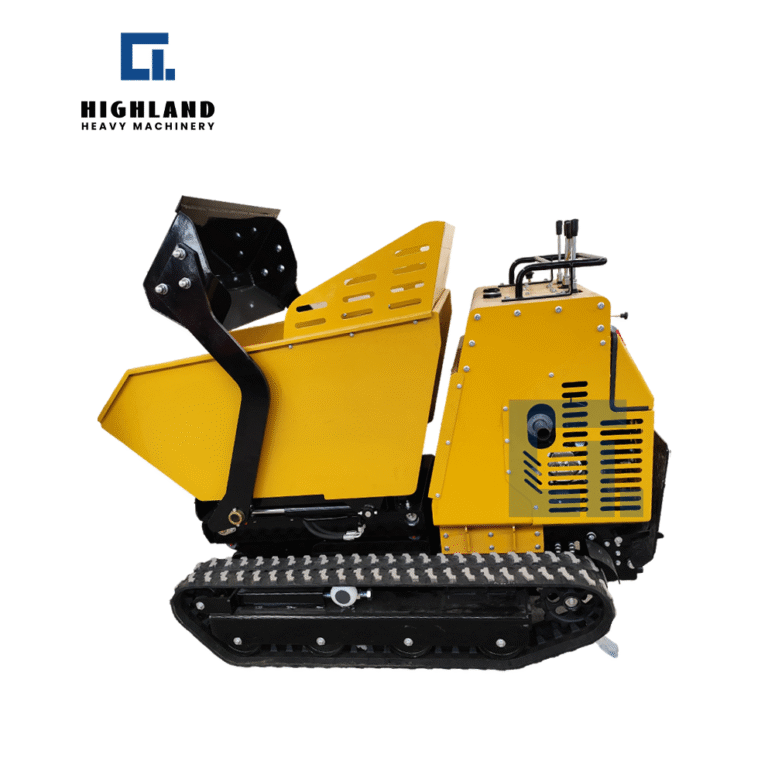

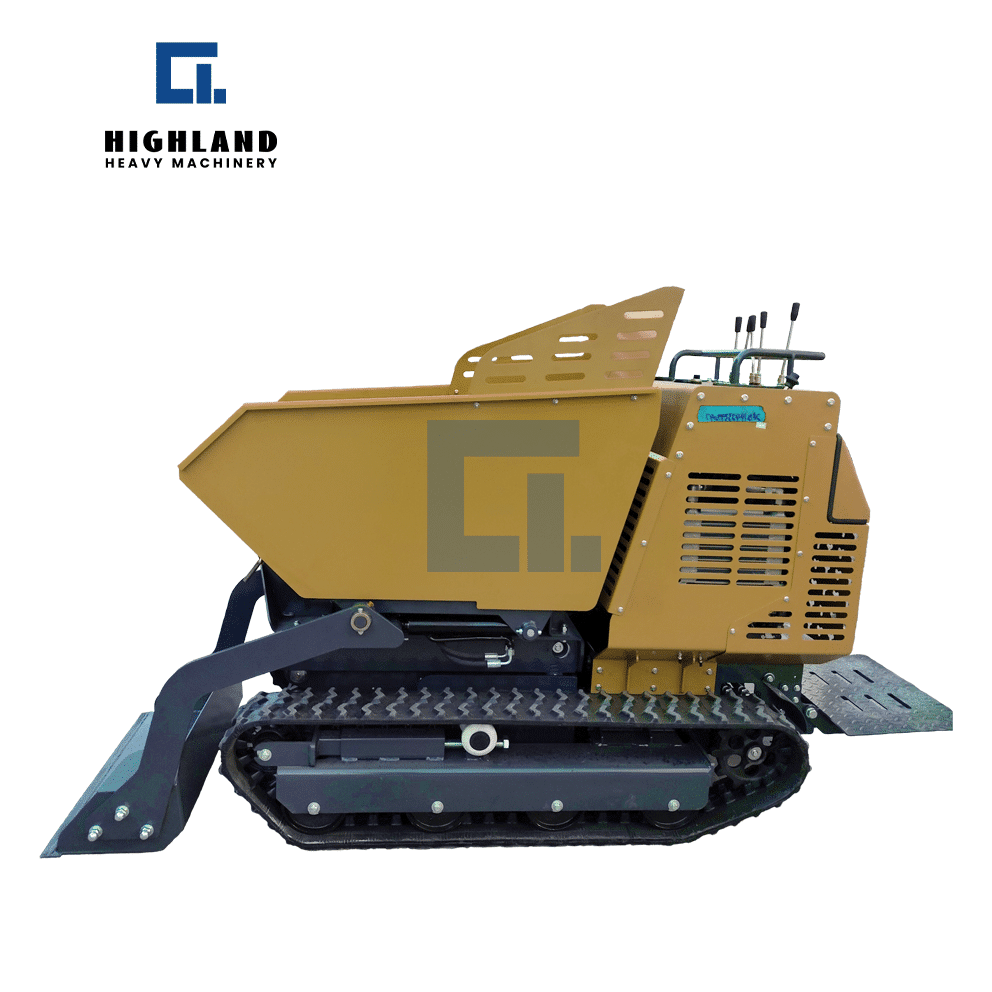

HIF-1000s Automatic Lifting Dumper
Basic Parameters :
Maximum payload | 1000kg |
Container capacity | 450dm³ |
Tipping method | Hydraulic self dumping |
Tipping angle | 90° |
Maximum lifting height | 1500mm |
Walking performance speed | 5km/h |
- Powerful
- Forged and pressed high-strength steel
- Large dump angle

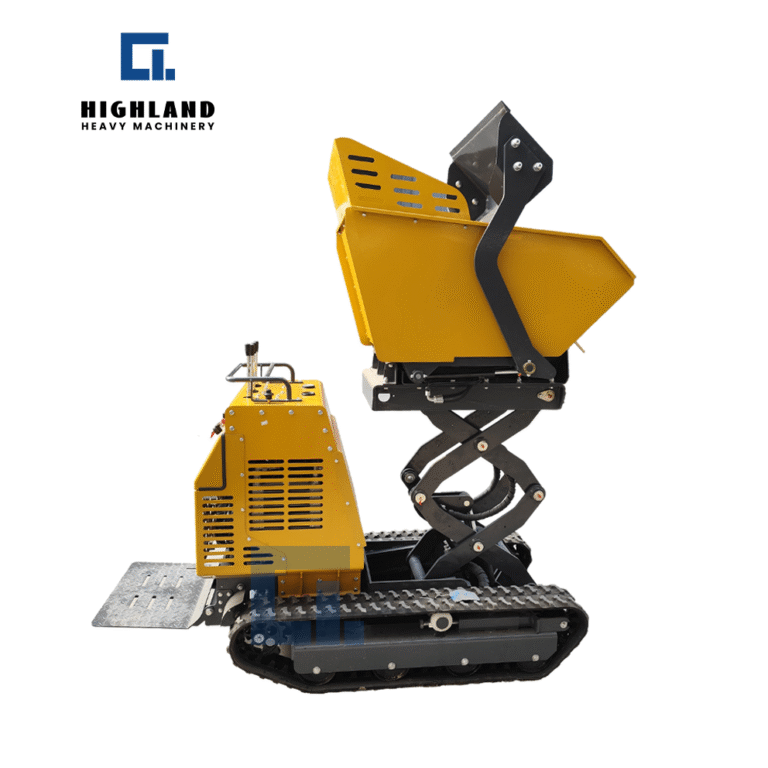

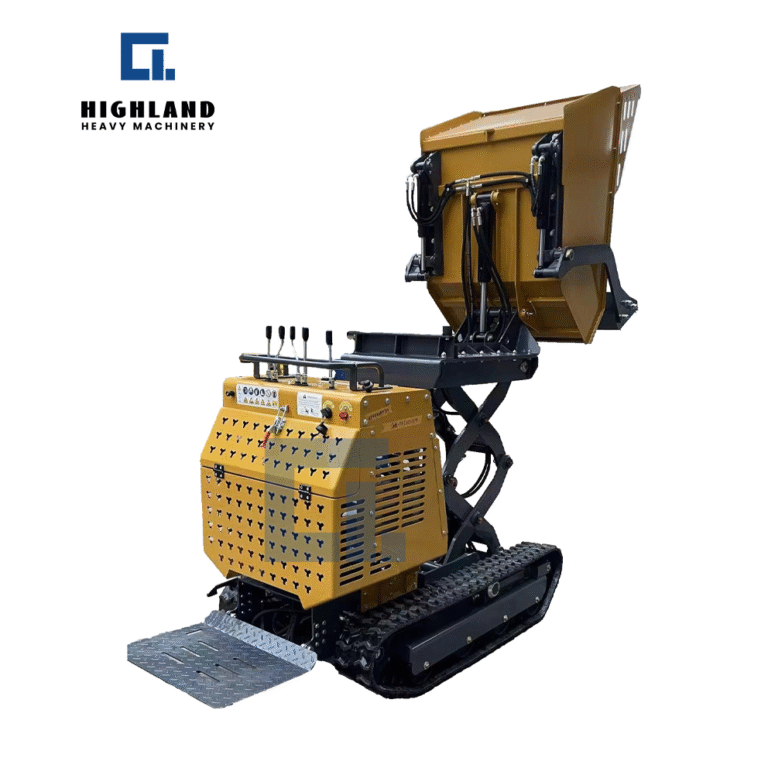

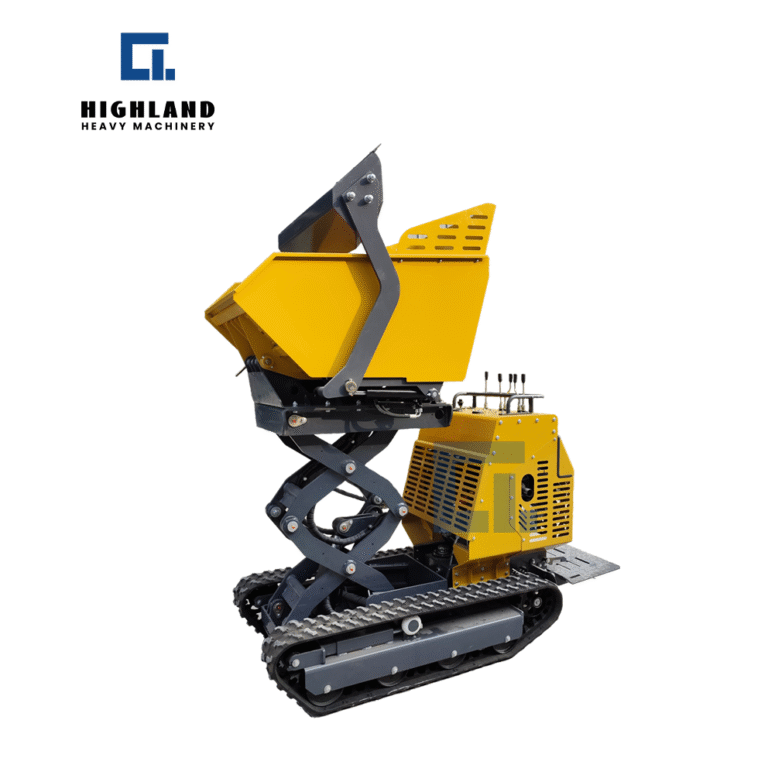

By adjusting the carriage height through a lifting mechanism and combining it with the tipping action of the dump body, it enables integrated loading, transportation, and unloading operations for materials (such as sand and gravel, muck, concrete, agricultural materials, etc.). Compared with ordinary dump trucks, the key feature of the “elevating type” is that the carriage can not only tip for unloading but also adjust its height via devices like hydraulic cylinders, adapting to different unloading scenarios (e.g., unloading into high silos or truck beds). It is commonly used in fields such as construction sites, mines, agricultural production, and municipal engineering.
1000KG Lifting Dumper | |
---|---|
Techinical Parameters | |
Net weight | 880kg |
Maximum payload | 1000kg |
Container capacity | 450dm³ |
Chassis width | 850mm |
Track width | 180mm |
Track grounding length | 1000mm |
Ground clearance of chassis | 110mm |
Tipping method | Hydraulic self dumping |
Tipping angle | 90° |
Maximum lifting height | 1500mm |
Unloading height above ground | 1300mm |
Tipping distance | 300mm |
Walking performance speed | 5km/h |
Minimum turning radius | 1300mm |
Track gauge | 670mm |
Gradeability | 20° |
Engine | |
Model | RATO 420cc / Briggs & Stratto 25T2 / Koop 192 / Honda GX390 |
Power type | Single cylinder, OHV, 4-stroke, air cooling |
Displacement (ML) | 420CC |
Rated power (kW/rpm) | 13.5HP/3600rpm |
Fuel type | 92# Gasoline |
Fuel tank capacity | 6.5L |
Dimensions | |
Overall dimensions | 2500*900*1560mm |
Container size | 1250*780*500mm |
