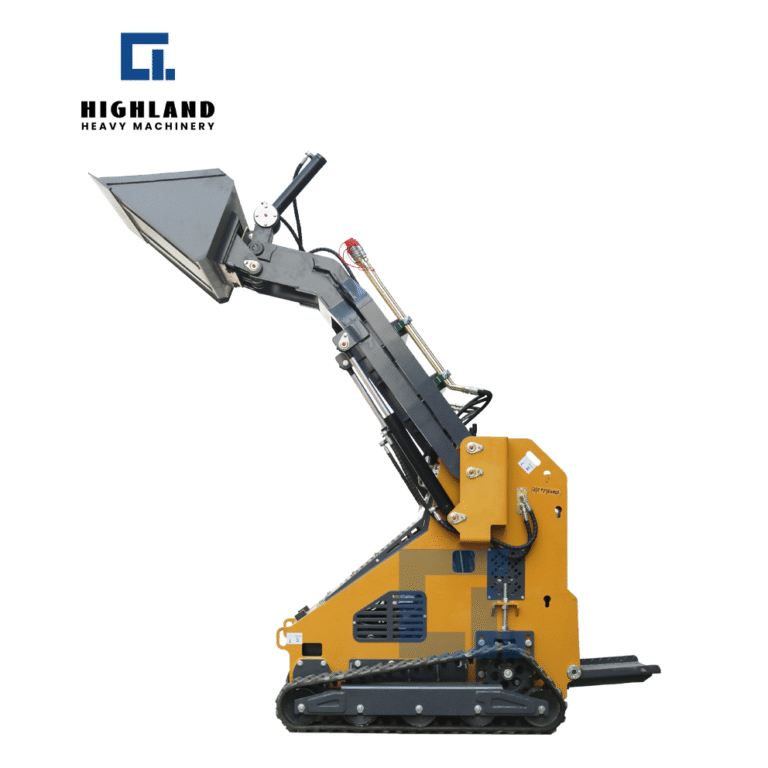

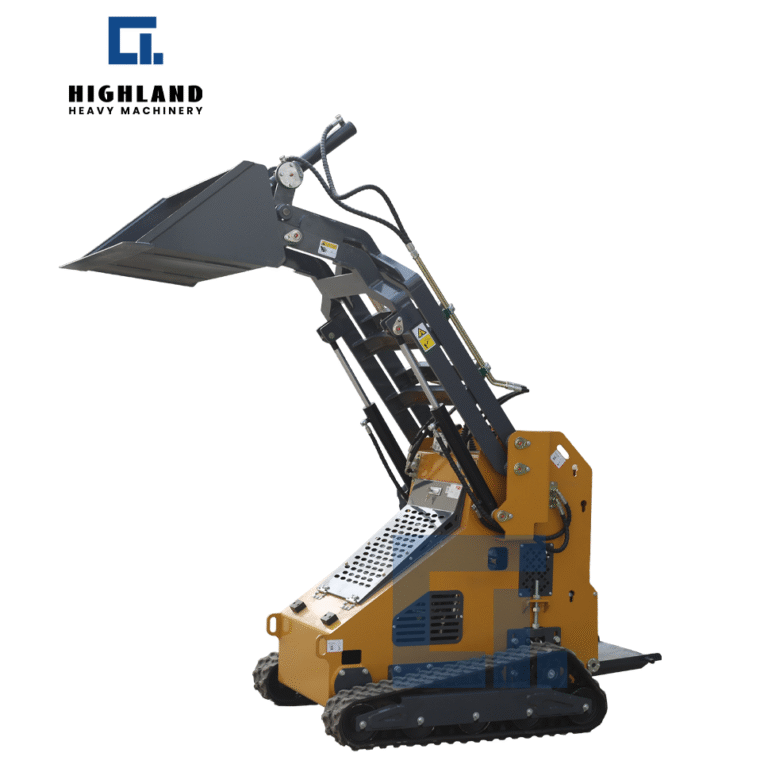

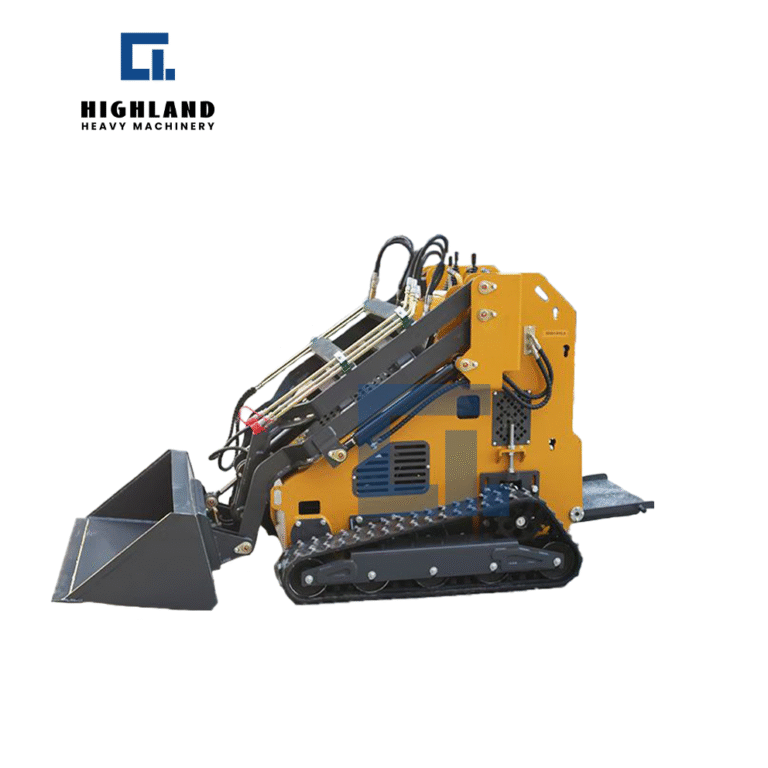

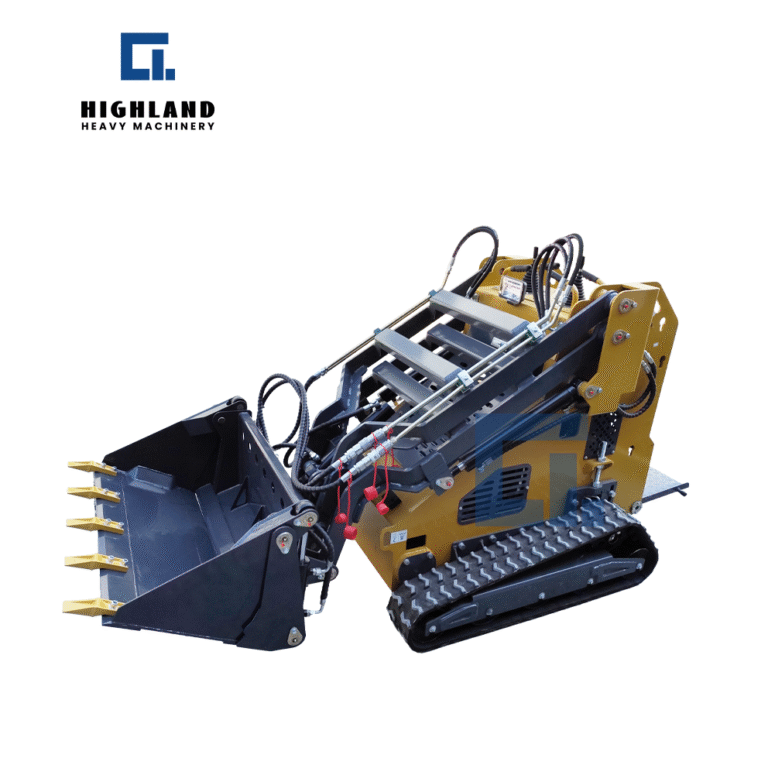

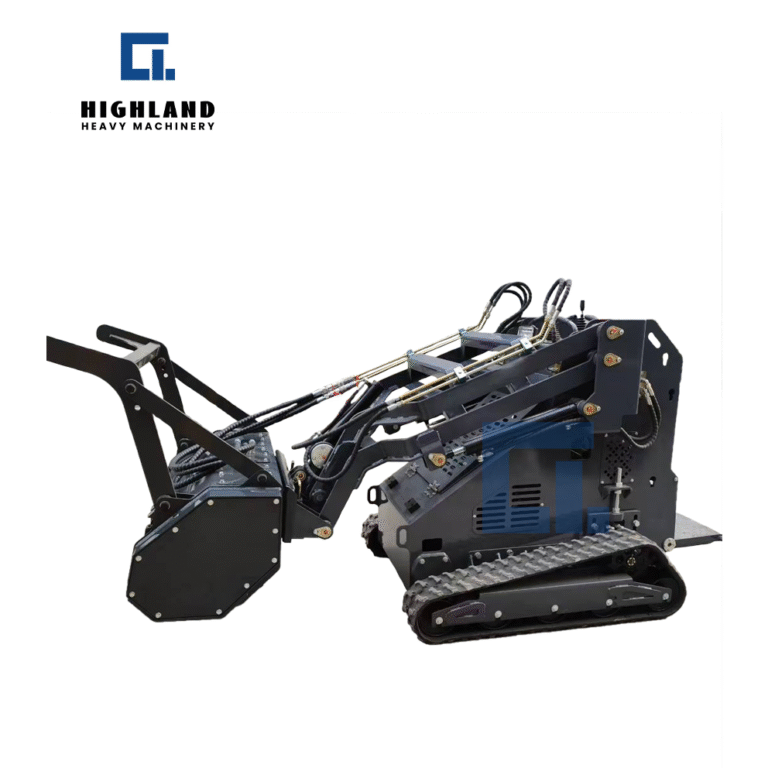

HIH 430 Skid Steer Loader (Crawler Telescopic arm)

Basic Parameters :

Maximum payload430kg
Bucket capacity0.17m³
Maximum digging force550kg
Speed0-7km/h
Machine net weight950kg (Wheel) / 1030kg (Crawler)
Operating weight1430kg
  • Wheeled and tracked options available
  • Compatible with various attachments for versatile multi-purpose use!
  • Telescopic hydraulic arm, powerful lifting capacity

Skid steer loaders, with their unique design and functional features, are widely used in engineering, agriculture, municipal services, and other fields. Their core advantages include:

  1. Exceptional maneuverability for narrow spaces
  2. High versatility for multi-purpose use
  3. Powerful performance for efficient work
  4. Easy operation, simple to learn and use
  5. Wide adaptability for all-terrain operation
  6. Simple maintenance and low operating costs
  7. High safety and reliable operation

These advantages make skid steer loaders “powerful tools for small-space operations” and “multi-functional work platforms,” particularly suitable for scenarios demanding high flexibility and versatility, such as small-to-medium engineering projects, municipal maintenance, and agricultural production.

Compared to HIH-380, HIH-430 has stronger power and greater lifting distance, superior in both power reserve and functionality.

430 Skid Steer Loader
Performance Parameter
Maximum payload430kg
Bucket capacity0.17m³
Maximum digging force550kg
Speed0-7km/h
Machine net weight950kg (Wheel) / 1030kg (Crawler)
Operating weight1430kg
Climbing angle30°
Engine
ModelRATO 739 / Briggs & Stratto 3864 / Honda GX690 / Koop 292
Horsepower and RPM26HP / 3600rpm
Fuel tank capacity30L
Hydraulic oil tank capacity20L
Hydraulic System
System pressure25Mpa
Standard flow33L/min
Flow rate of walking pump75L/min
Flow rate of oil replenishment pump10L/min
Work system44L/min
Dimensions
Maximum working height2300mm
Maximum pin height2100mm
Maximum unloading height1450/1900mm
Maximum unloading distance348mm
Bucket swing angle55°
Bucket unloading angle40°
Departure angle20°
Total height1350mm
Total width1200mm
Ground clearance100mm
Wheelbase860mm
No bucket length2020mm
Bucket width1190mm
Total length (with bucket)2600mm
Tire/Track Model
T-shaped engineering tire18*8.5-8
Track model180/60/46
