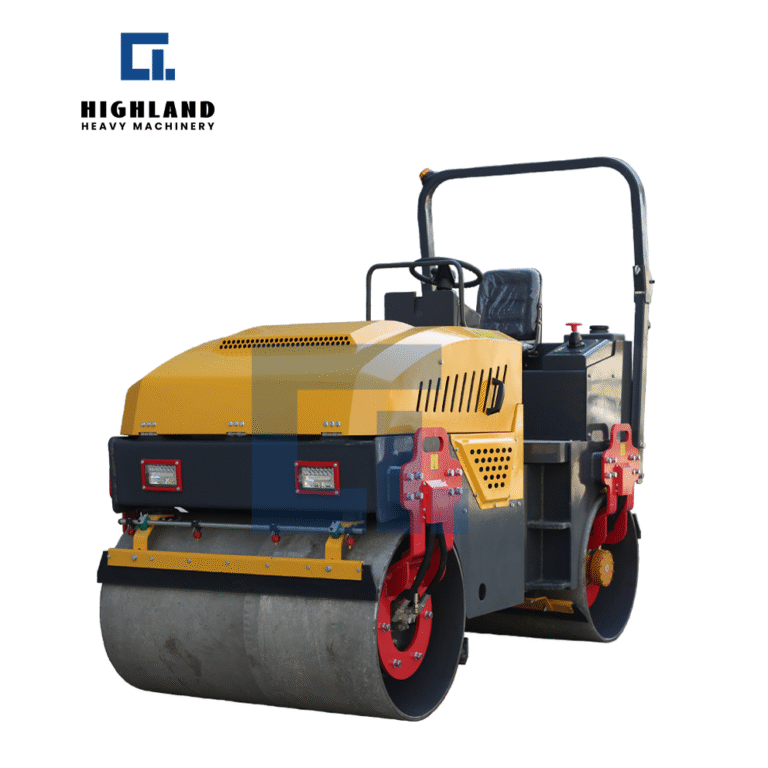

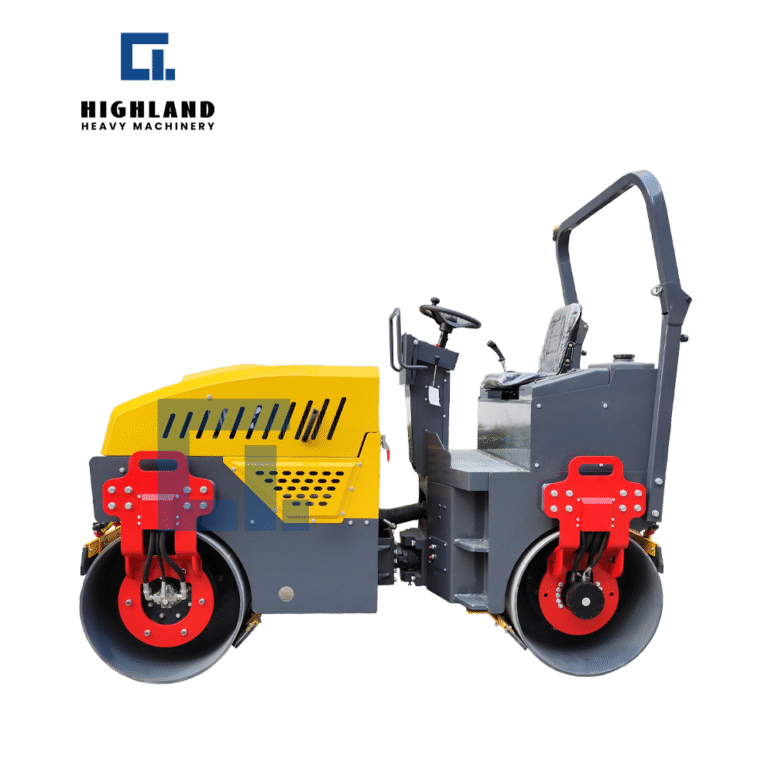

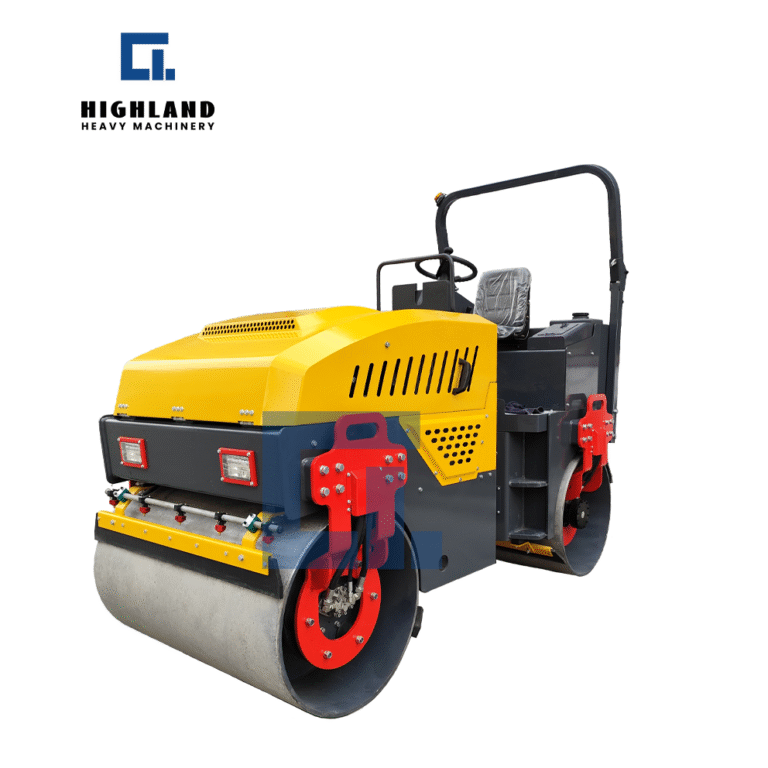

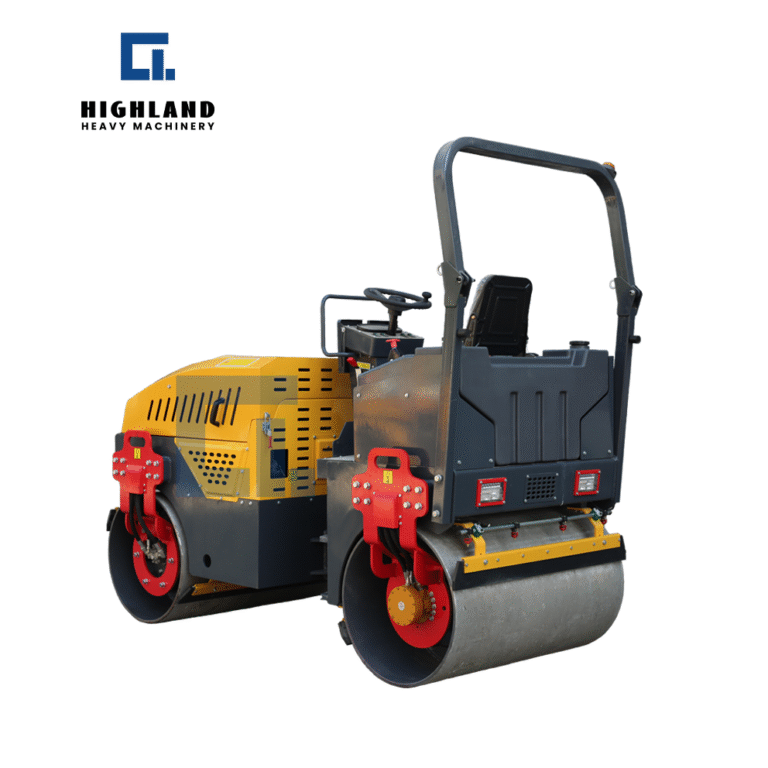

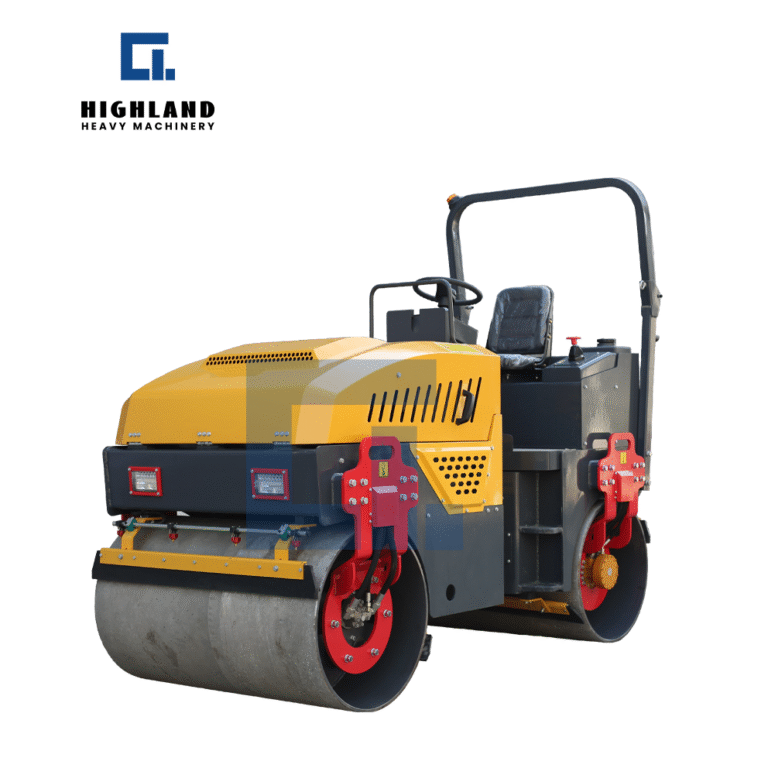

HIR-JS1200 (3T) Double Steel Wheels
Basic Parameters :
| Operating weight | 3140kg |
| Excitation force | 45kN*2 |
| Steering form | Hydraulic steering |
| Power | 39hp/2600rpm |
| Steel wheel width (front/rear) | 1200mm |
| Steel wheel diameter (front/rear) | 710mm |
- High flexibility
- Targeted compaction
- Seated control
Small seated double steel wheel compactor:
a high-efficiency compaction device designed for narrow spaces, integrating double steel wheel vibratory compaction technology and user-friendly operation. Suitable for municipal engineering, residential roads, pipeline backfilling, etc.
The hydraulic system controls travel and vibration, ensuring smooth operation and sensitive response. Climbing capacity 30%-40%, ideal for narrow space work, efficiently compacts pavements.
| HIR-JS1200 3 Ton Full Hydraulic Roller | |
|---|---|
| Walk | |
| Speed | 0-12km/h |
| Turning radius | 3000mm |
| Gradeability | 30% |
| Compaction | |
| Static line load before/after | 125/87N/cm |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 70Hz |
| Excitation force | 45kN*2 |
| Work | |
| Drive form | Hydraulic dual wheel drive |
| Vibration mode | Hydraulic vibration |
| Dual wheel vibration | |
| Steering form | Hydraulic steering |
| Watering method | Electric pressure spray water |
| Water tank material | Rotomolding water box |
| Water tank capacity | 180L |
| Hydraulic oil tank capacity | 40L+ 56L |
| Parking brake | Hydraulic self-locking |
| Engine | |
| Model | Changchai ZN390 /Kubota V1505 / Yanmar386 |
| Type | Diesel engine, vertical three cylinder water-cooled |
| Power | 39hp/2600rpm |
| Fuel tank capacity | 36L |
| Dimension | |
| Steel wheel width (front/rear) | 1200mm |
| Steel wheel diameter (front/rear) | 710mm |
| Total length | 2700mm |
| Total width | 1320mm |
| Total height (excluding crash beam) | 1900mm |
| Weight | |
| Net weight | 2900kg |
| Operating weight | 3140kg |
