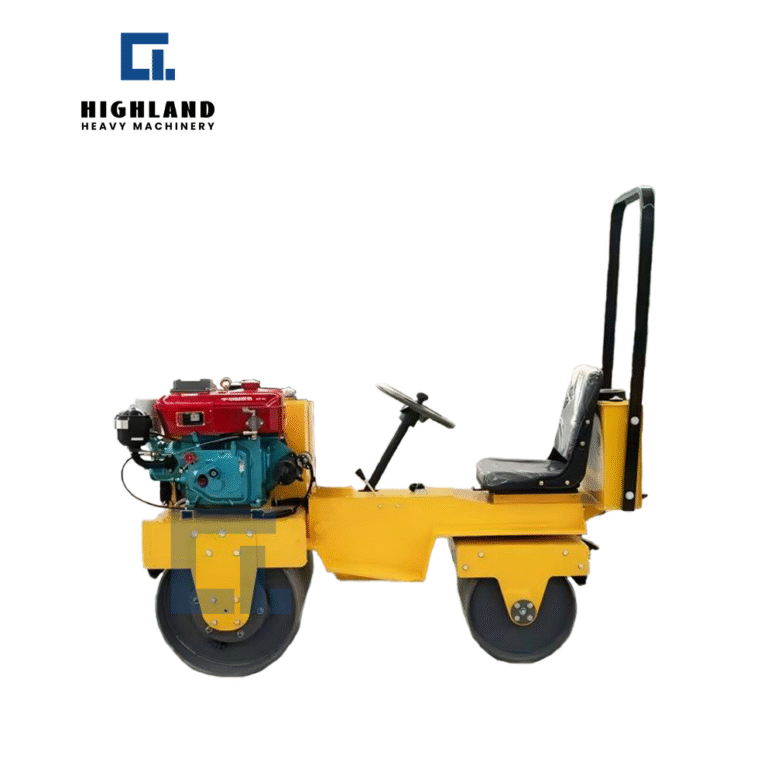

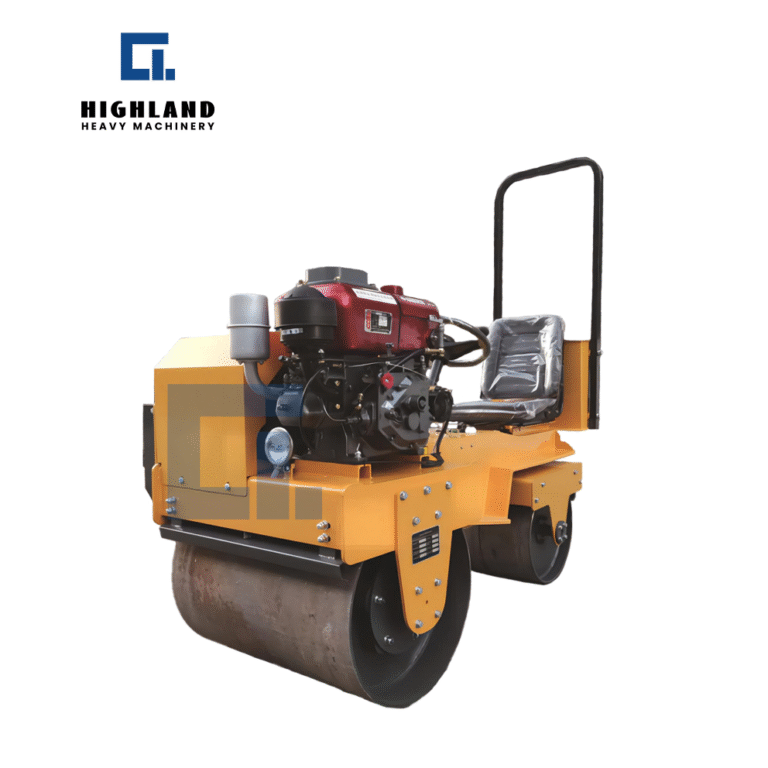

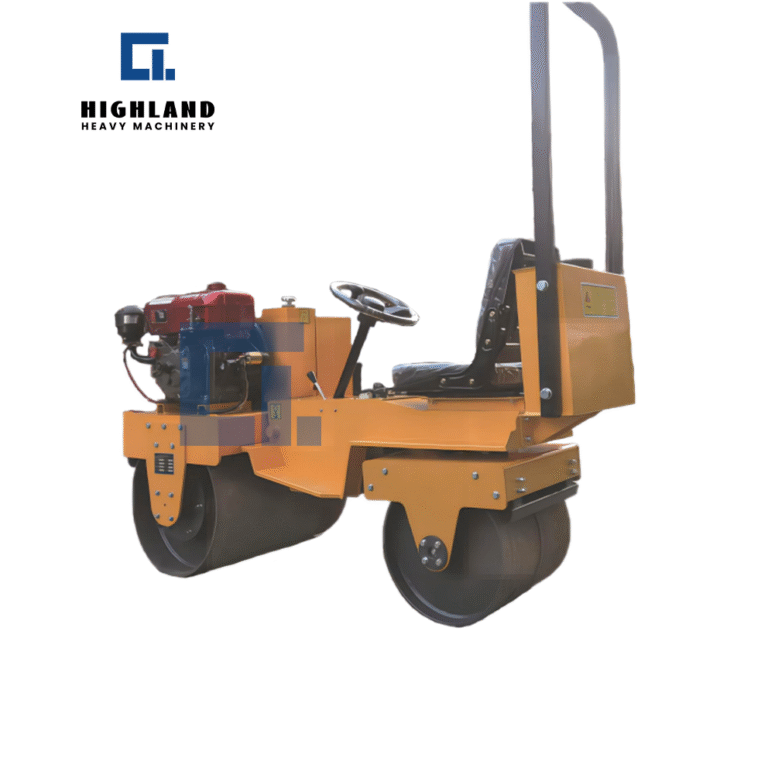

HIR-JS700C Small Car Roller
Basic Parameters :
| Excitation force | 25kN |
| Power | 8hp/2300rpm |
| Steel wheel width | 700mm |
| Steel wheel diameter | 530mm |
| Type | Diesel engine, air-cooled |
| Steering form | Rear wheel steering |
| Vibration mode | One click vibration – electromagnetic clutch |
| Front wheel vibration |
- Small size, high flexibility
- Lightweight, little impact on existing structures
- Easy to operate
The small tandem steel wheel roller is a lightweight, compact version of tandem steel wheel rollers. Its core features remain “dual steel wheels + adjustable vibration,” with design focusing more on narrow-space operations.
Mainly used for compacting small or narrow areas—such as municipal sidewalks, alley asphalt repairs, courtyard/parking lot base compaction, indoor warehouse floor treatment—where large equipment can’t access.
Core advantages:
Small size, high flexibility, suited for small-scale precise compaction;
Lightweight, little impact on existing structures (e.g., curbs, underground pipelines);
Easy to operate, suitable for small projects or maintenance scenarios.
| HIR-JS700C Small Car Roller | |
|---|---|
| Walk | |
| Speed | 0-6km/h |
| Turning radius | 1800mm |
| Gradeability | 25% |
| Compaction | |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 60Hz |
| Excitation force | 25kN |
| Work | |
| Drive form | Hydraulic pump and motor |
| Vibration mode | One click vibration - electromagnetic clutch |
| Front wheel vibration | |
| Steering form | Rear wheel steering |
| Engine | |
| Model | Changfa R178 / Honda GX270 / Changchai R180 / Briggs & Stratto / Koop 178 |
| Type | Diesel engine, air-cooled |
| Power | 8hp/2300rpm |
| Fuel tank capacity | 5.5L |
| Dimension | |
| Steel wheel width | 700mm |
| Steel wheel diameter | 530mm |
| Total length | 1880mm |
| Total width | 860mm |
| Total height | 1250mm |
| Weight | |
| Net weight | 630kg |
| Operating weight | 730kg |
