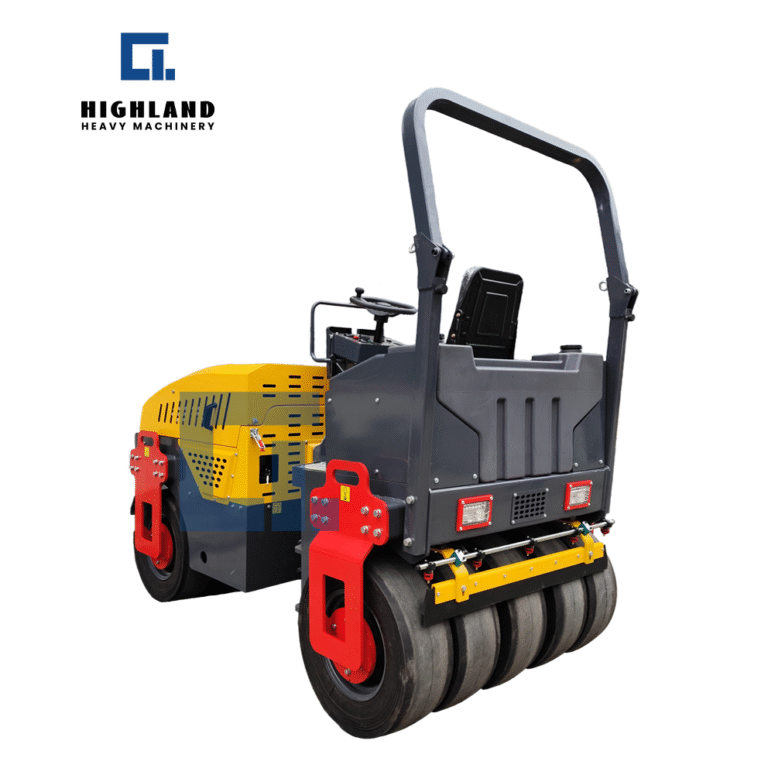

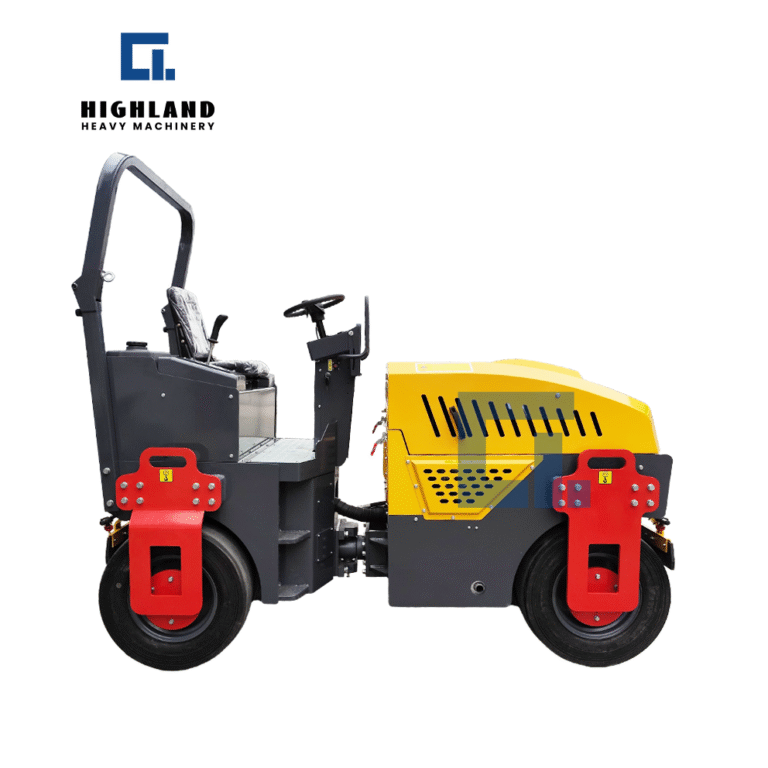

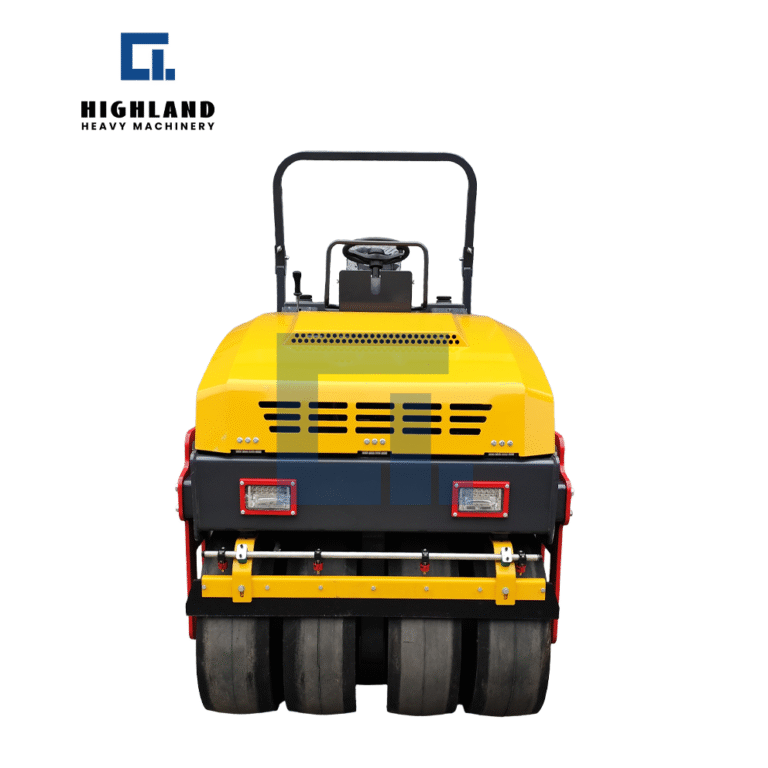

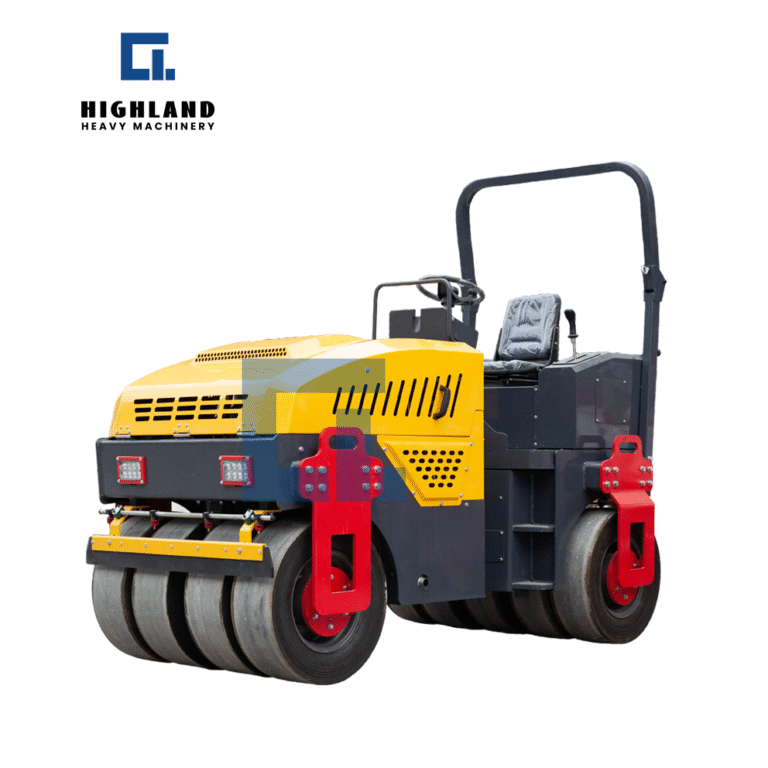

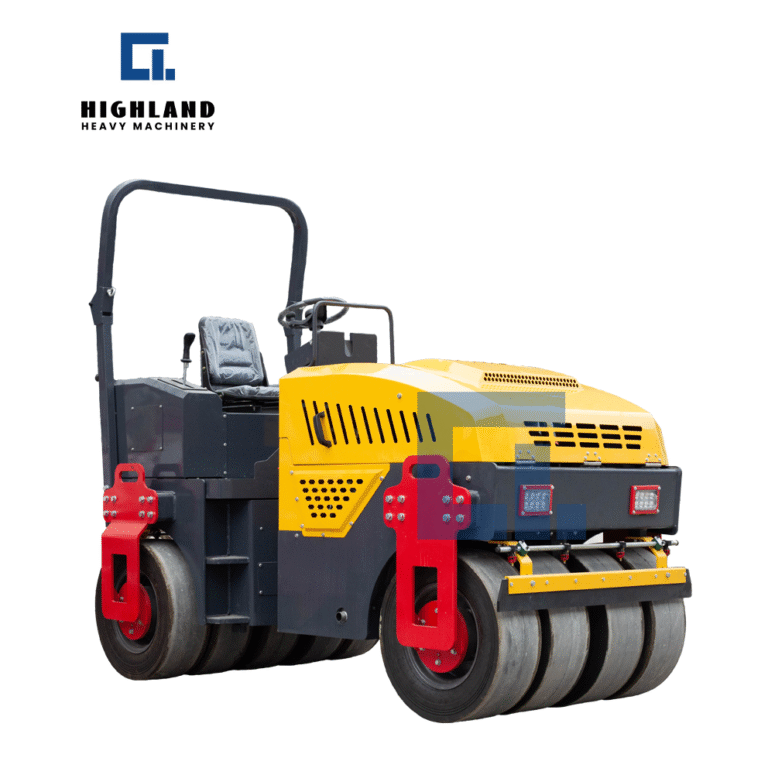

HIR-JST1200 3 Ton Double Rubber Wheeled Roller
Basic Parameters :
Turning radius | 3000mm |
Static line load before/after | 125/87N/cm |
Number of rubber tire | Front 4 rubber tires |
Rear 5 rubber tires | |
Power | 39hp/2600rpm |
Type | Diesel engine, vertical three cylinder water-cooled |
- Flexible protection
- Adjustable pressure
- Superior flatness
The all-rubber tire roller is a compaction equipment with inflatable rubber tires as its sole compaction component. It achieves precision compaction of pavement materials through the flexible pressure and kneading action of multiple rubber tires. Its core features are “no steel wheels, fully flexible,” forming functional complementarity with steel wheel rollers and undertaking specific compaction tasks in asphalt pavement construction.
Core advantages:
Flexible protection
Adjustable pressure
Superior flatness
HIR-JST1200 3 Ton Double Rubber Wheeled Roller | |
---|---|
Walk | |
Speed | 0-8km/h |
Turning radius | 3000mm |
Gradeability | 30% |
Compaction | |
Static line load before/after | 125/87N/cm |
Work | |
Drive form | Hydraulic dual wheel drive |
Number of rubber tire | Front 4 rubber tires |
Rear 5 rubber tires | |
Steering form | Hydraulic steering |
Watering method | Electric pressure spray water |
Water tank material | Rotomolding water box |
Water tank capacity | 180L |
Hydraulic oil tank capacity | 40L |
Engine | |
Model | Changchai 390 / Honda GX690 / Briggs & Stratto 3864 /Kubota D1105 |
Type | Diesel engine, vertical three cylinder water-cooled |
Power | 39hp/2600rpm |
Fuel tank capacity | 36L |
Dimension | |
Total length | 2700mm |
Total width | 1500mm |
Total height (excluding crash beam) | 1900mm |
Weight | |
Net weight | 2328kg |
Operating weight | 2600kg |
