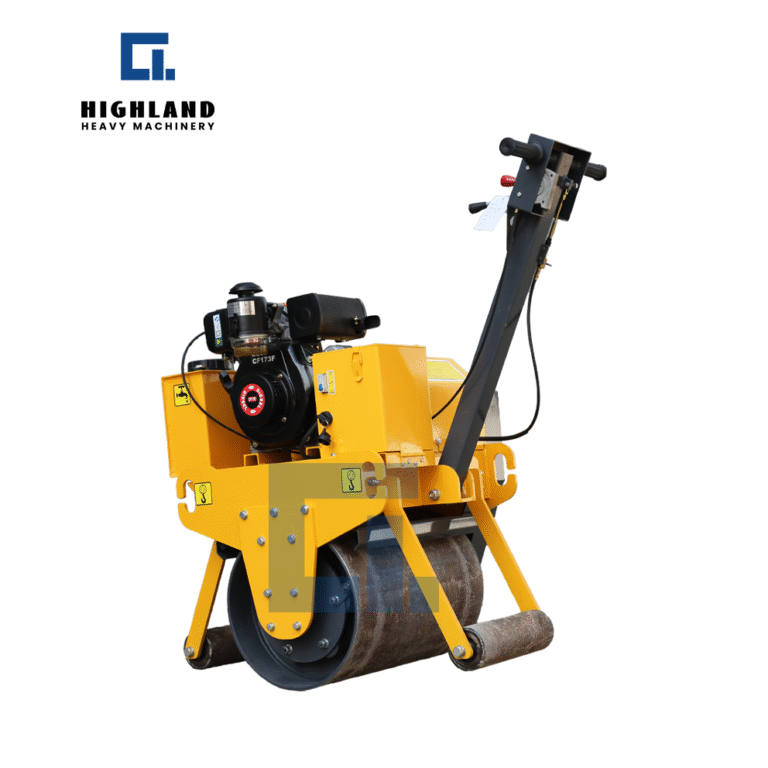

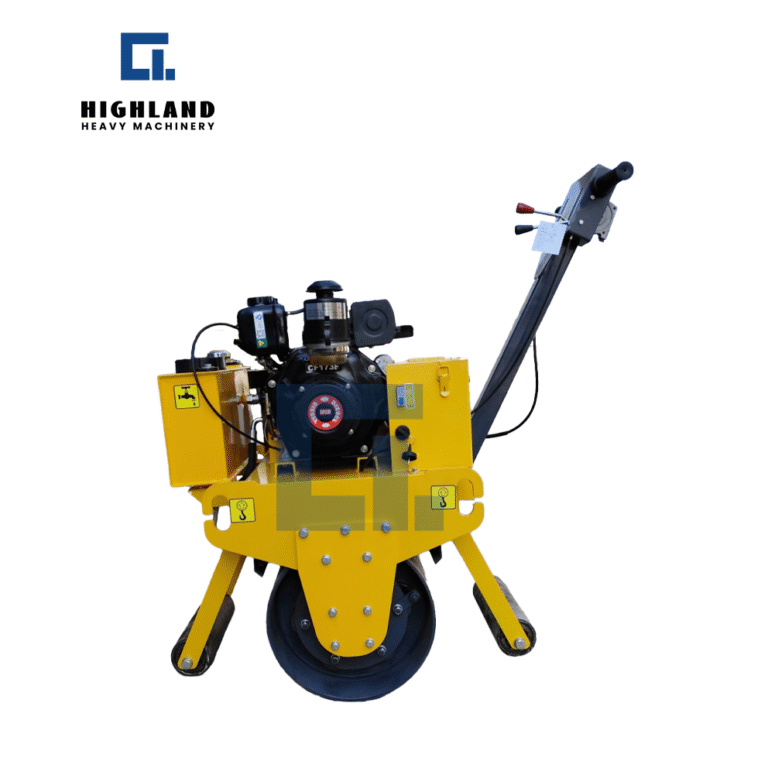

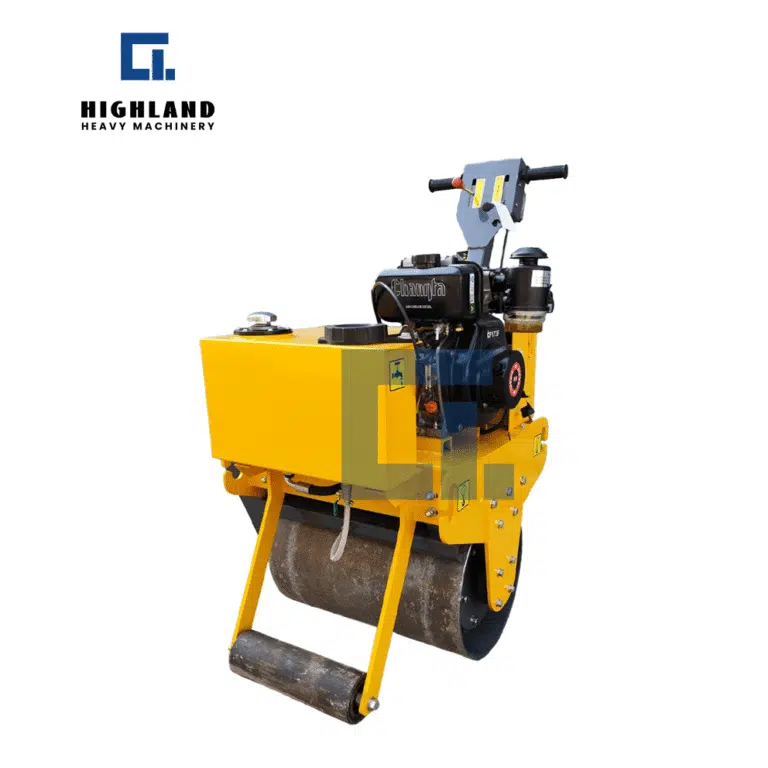

HIR-YL600C Walking Single Wheel Roller
Basic Parameters :
| Excitation force | 20kN |
| Power | 5.5hp / 3600rpm |
| Steel wheel width | 600mm |
| Steel wheel diameter | 426mm |
| Type | Diesel engine, air-cooled four stroke |
| Operating weight | 360kg |
- Ultra-compact size
- Suitable for micro, high-precision compaction
- Simple to operate
Mainly used for compacting tiny or complex areas, such as small-area asphalt repairs, precise compaction around pipes or curbs, garden paths, small indoor spaces (e.g., basement floors) — where even small ride-on rollers can’t access.
Core advantages:
Ultra-compact size, easy to maneuver when pushed manually;
Suitable for micro, high-precision compaction;
Simple to operate, ideal for small DIY projects or local repairs.
| HIR-YL600C Walking Single Wheel Roller | |
|---|---|
| Walk | |
| Speed | 0-4km/h |
| Gradeability | 25% |
| Compaction | |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 75Hz |
| Excitation force | 20kN |
| Water tank capacity | 10L |
| Water tank material | Iron water tank / Rotomolding water tank |
| Hydraulic oil tank capacity | 6L |
| Work | |
| Drive form | Hydraulic pump and motor |
| Vibration form | Automatic vibration, centrifugal clutch |
| Engine | |
| Model | Changfa173 / Honda GX160 / Briggs & Stratto / Koop 173 |
| Type | Diesel engine, air-cooled four stroke |
| Power | 5.5hp / 3600rpm |
| Fuel tank capacity | 3.5L |
| Dimension | |
| Steel wheel width | 600mm |
| Steel wheel diameter | 426mm |
| Total length (Flatten the handrail) | 1650mm |
| Total width | 760mm |
| Total height (Stand up the handrail) | 1350mm |
| Weight | |
| Net weight | 342kg |
| Operating weight | 360kg |
