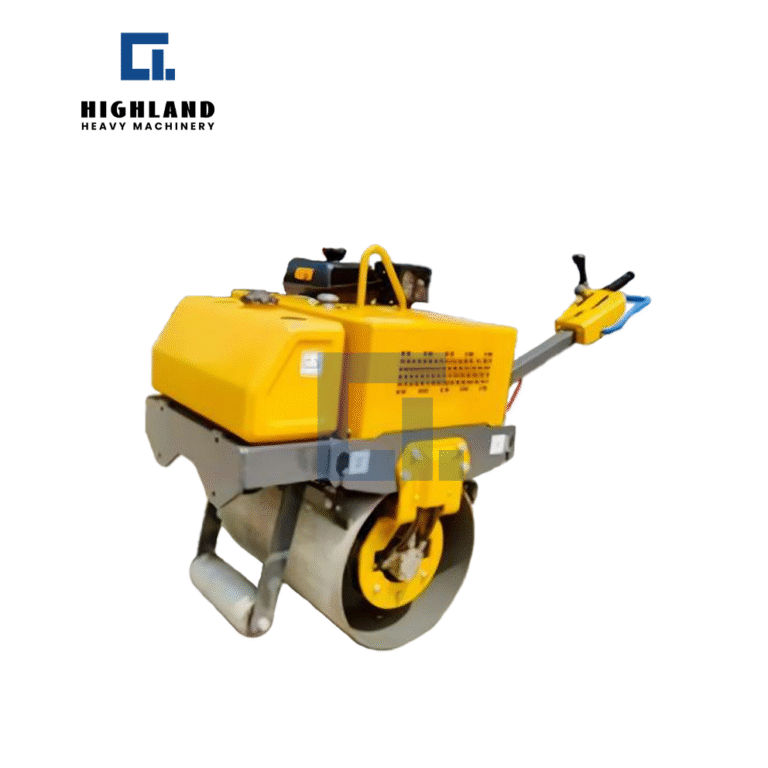

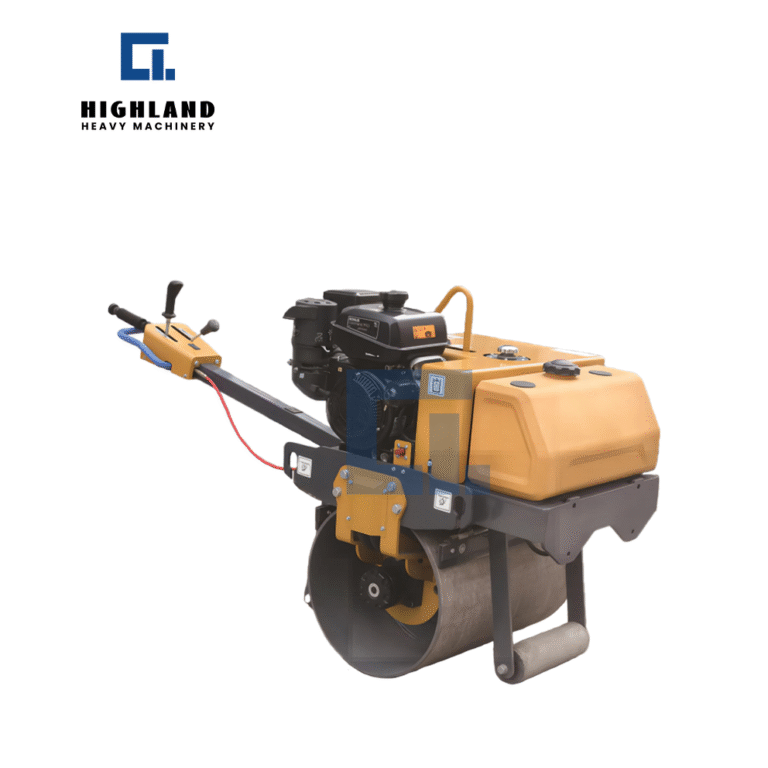

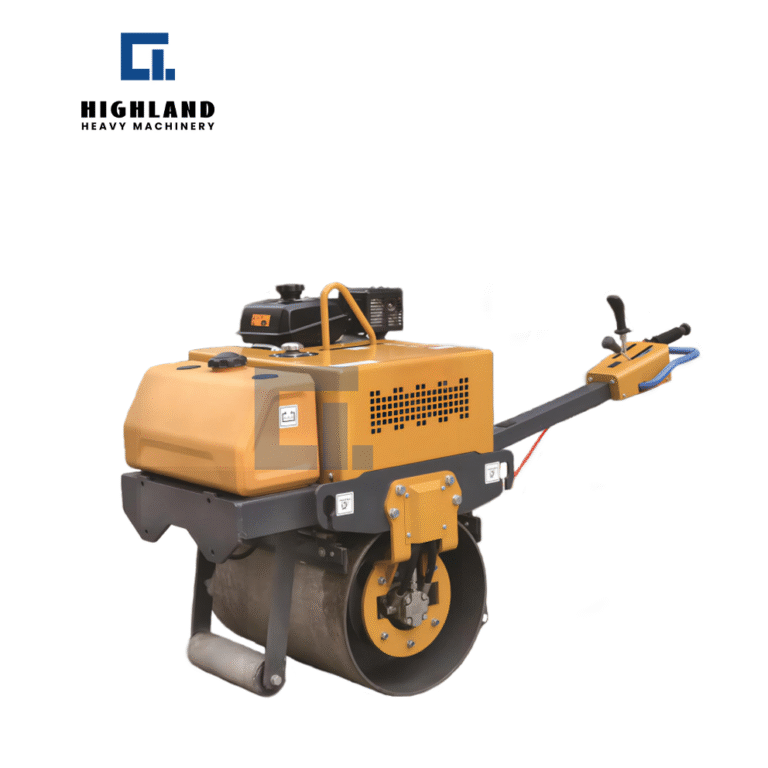

HIR-YL708 Walking Single Wheel Roller
Basic Parameters :
| Excitation force | 20kN |
| Power | 13hp / 3600rpm |
| Steel wheel width | 720mm |
| Steel wheel diameter | 530mm |
| Type | Air-cooled gasoline engine |
| Operating weight | 500kg |
- High flexibility
- Targeted compaction
- Seated control
Small seated double steel wheel compactor:
a high-efficiency compaction device designed for narrow spaces, integrating double steel wheel vibratory compaction technology and user-friendly operation. Suitable for municipal engineering, residential roads, pipeline backfilling, etc.
The hydraulic system controls travel and vibration, ensuring smooth operation and sensitive response. Climbing capacity 30%-40%, ideal for narrow space work, efficiently compacts pavements.
| HIR-YL708 Walking Single Wheel Roller | |
|---|---|
| Walk | |
| Speed | 0-4km/h |
| Gradeability | 30% |
| Compaction | |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 75Hz |
| Excitation force | 20kN |
| Water tank capacity | 40L |
| Hydraulic oil tank capacity | 10L |
| Work | |
| Drive form | Hydraulic pump and motor |
| Vibration form | Hydraulic vibration |
| Engine | |
| Model | Changchai192 / Honda GX390 / Briggs & Stratto |
| Type | Air-cooled gasoline engine |
| Power | 13hp / 3600rpm |
| Fuel tank capacity | 5.5L |
| Dimension | |
| Steel wheel width | 720mm |
| Steel wheel diameter | 530mm |
| Total length (Flatten the handrail) | 1100mm |
| Total width | 900mm |
| Total height (Stand up the handrail) | 1950mm |
| Weight | |
| Net weight | 468kg |
| Operating weight | 500kg |
