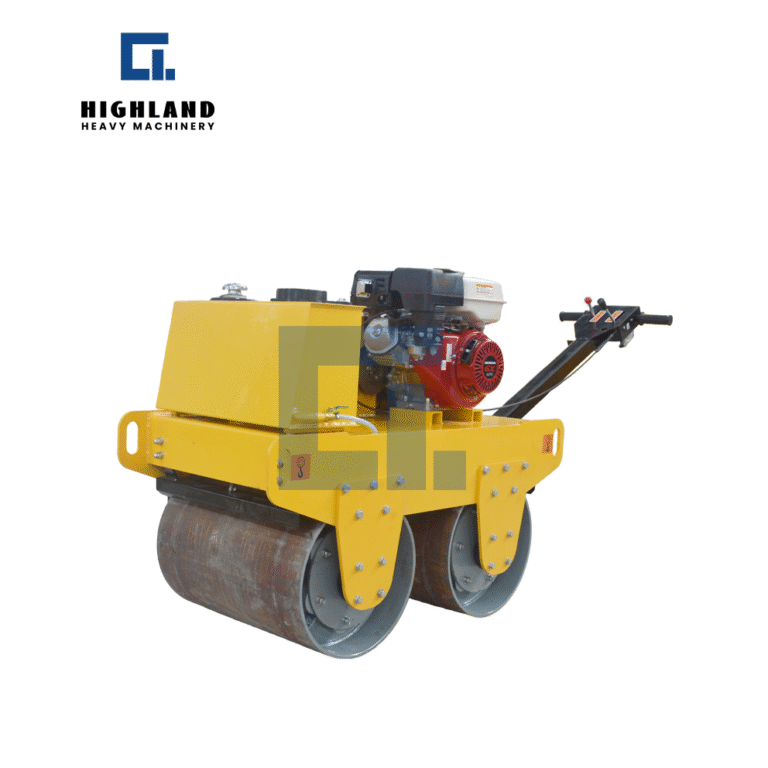

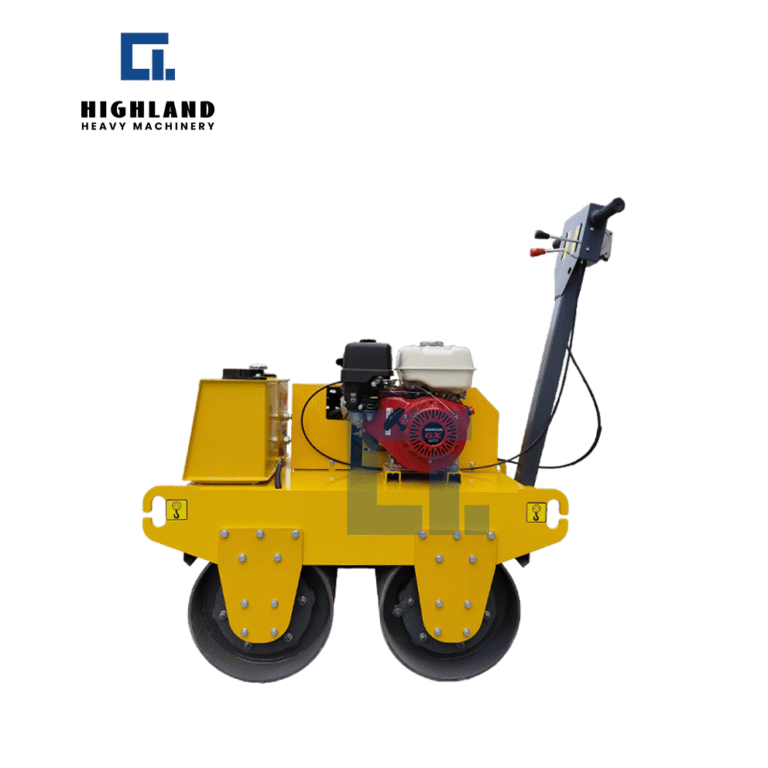

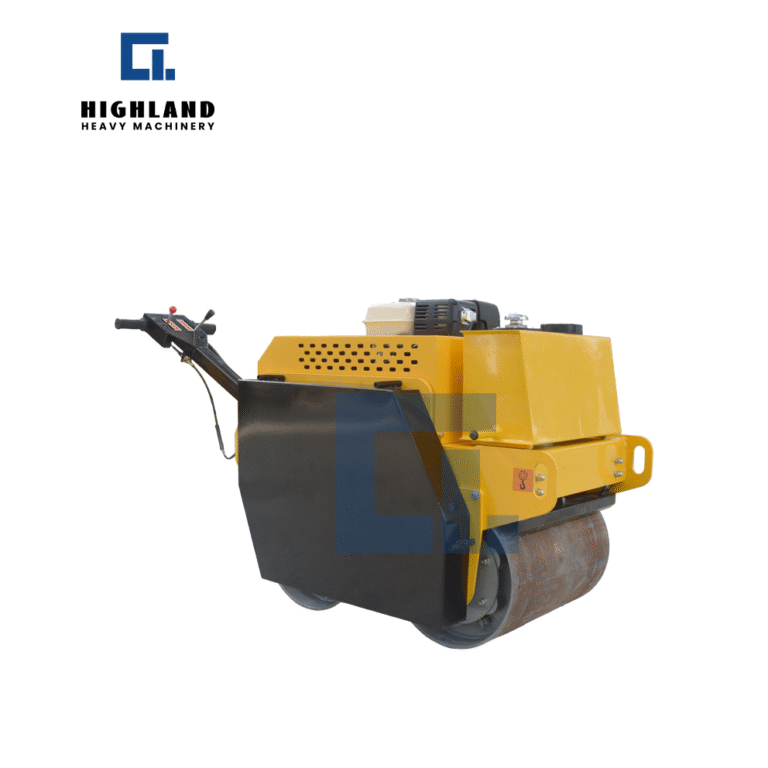

HIR-YLS600A Walking Double Wheel Roller (Air-cooled gasoline model)

Basic Parameters :

Excitation force20kN*2
Power9hp / 3600rpm
Steel wheel width600mm
Steel wheel diameter426mm
TypeGasoline engine, air-cooled four-stroke
Operating weight510kg
  • High flexibility
  • Controllable costs
  • 50% fewer compaction passes

The handheld double-drum roller is a compaction device for small projects, mainly used for road compaction in narrow spaces or complex terrains. Its key feature: dual-drum drive (both front and rear) with vibration, enabling efficient compaction of asphalt, sand, backfill, etc. Compared to small single-drum rollers, its combination of vibration and static pressure achieves double the compaction effect in one pass.

HIR-YLS600A Walking Double Wheel Roller (Air-cooled gasoline model)
Walk
Speed0-6km/h
Gradeability30%
Compaction
Nominal amplitude0.5mm
Vibration frequency75Hz
Excitation force20kN*2
Water tank capacity15L
Water tank materialIron water tank / Rotomolding water tank
Hydraulic oil tank capacity10L
Work
Drive formHydraulic pump and motor - double wheel drive
Vibration formAutomatic Vibration - double wheel vibration
Engine
ModelChangfa178 / Changchai R180 / Koop178 / Briggs & Stratto / Honda GX270
TypeGasoline engine, air-cooled four stroke
Power9hp / 3600rpm
Fuel tank capacity3.5L
Dimension
Steel wheel width600mm
Steel wheel diameter426mm
Total length (Flatten the handrail)2450mm
Total width780mm
Total height (Stand up the handrail)1520mm
Weight
Net weight480kg
Operating weight510kg
