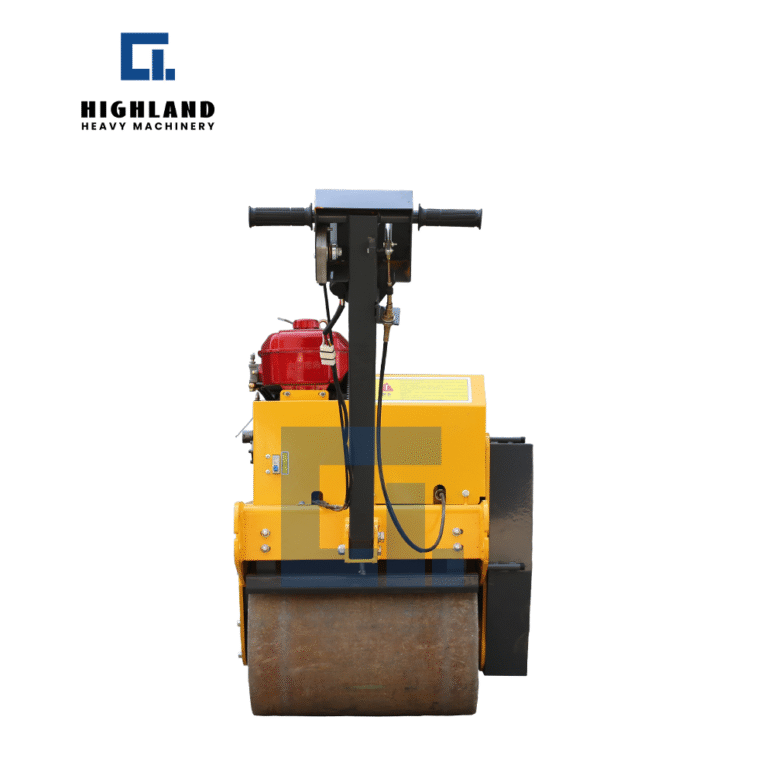

HIR-YLS600C Walking Double Wheel Roller (Water-cooled disel model)
Basic Parameters :
| Excitation force | 20kN*2 |
| Power | 8hp / 2300rpm |
| Steel wheel width | 600mm |
| Steel wheel diameter | 426mm |
| Type | Diesel engine, water-cooled four stroke |
| Operating weight | 580kg |
- High flexibility
- Controllable costs
- 50% fewer compaction passes
The handheld double-drum roller is a compaction device for small projects, mainly used for road compaction in narrow spaces or complex terrains. Its key feature: dual-drum drive (both front and rear) with vibration, enabling efficient compaction of asphalt, sand, backfill, etc. Compared to small single-drum rollers, its combination of vibration and static pressure achieves double the compaction effect in one pass.
| HIR-YLS600C Walking Double Wheel Roller (Water-cooled disel model) | |
|---|---|
| Walk | |
| Speed | 0-6km/h |
| Gradeability | 30% |
| Compaction | |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 75Hz |
| Excitation force | 20kN*2 |
| Water tank capacity | 15L |
| Water tank material | Iron water tank / Rotomolding water tank |
| Hydraulic oil tank capacity | 10L |
| Work | |
| Drive form | Hydraulic pump and motor - double wheel drive |
| Vibration form | Automatic Vibration - double wheel vibration |
| Engine | |
| Model | Changfa178 / Changchai R180 / Koop178 / Briggs & Stratto / Honda GX270 |
| Type | Diesel engine, water-cooled four stroke |
| Power | 8hp / 2300rpm |
| Fuel tank capacity | 5.5L |
| Dimension | |
| Steel wheel width | 600mm |
| Steel wheel diameter | 426mm |
| Total length (Flatten the handrail) | 2450mm |
| Total width | 780mm |
| Total height (Stand up the handrail) | 1520mm |
| Weight | |
| Net weight | 550kg |
| Operating weight | 580kg |
