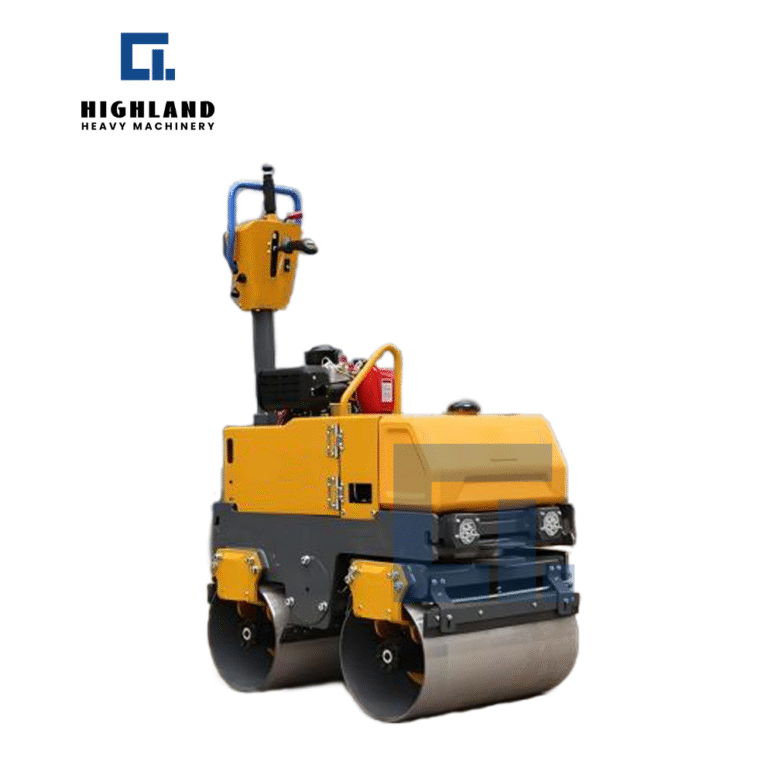

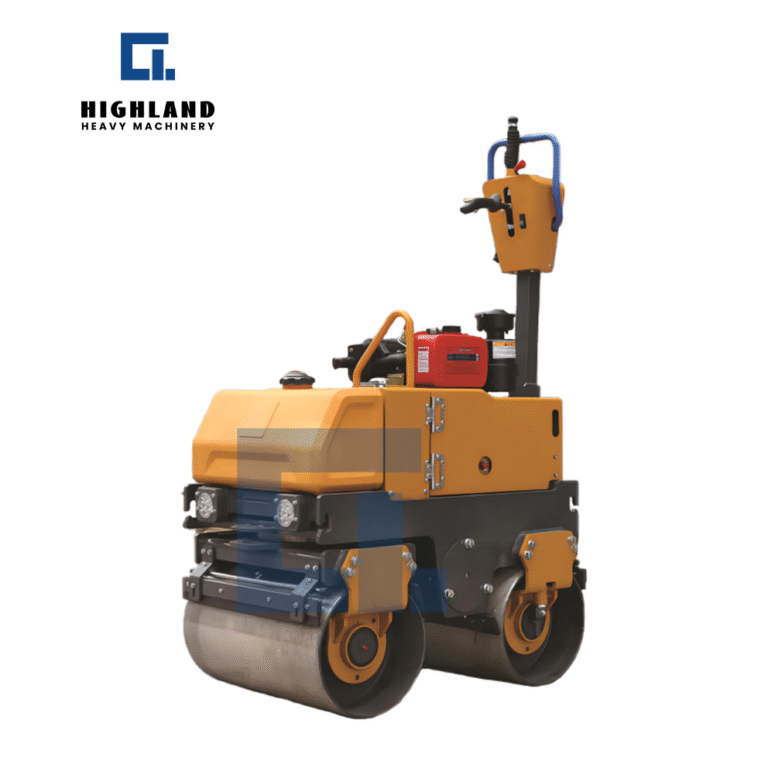

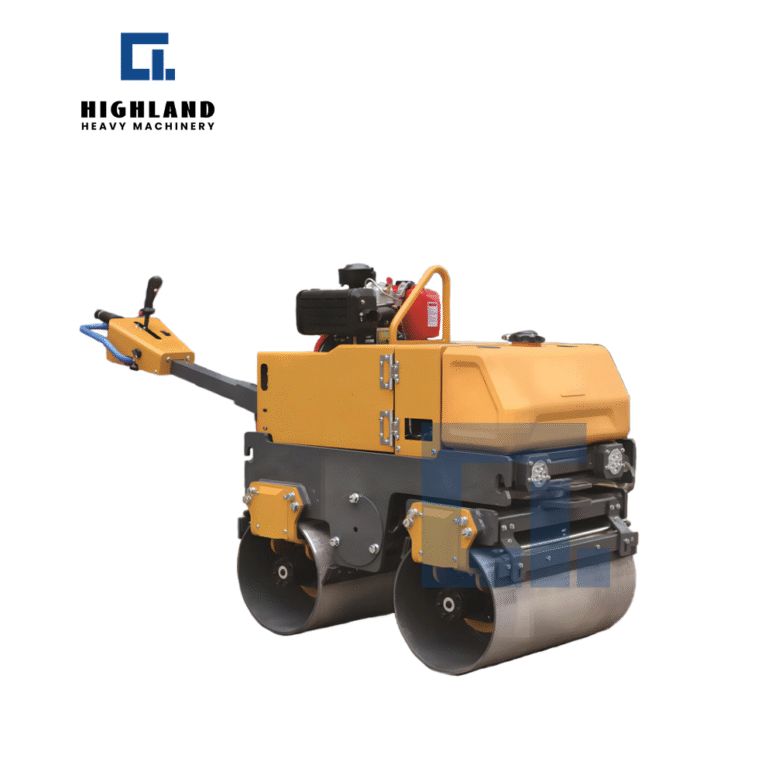

HIR-YLS708 Walking Double Wheel Roller
Basic Parameters :
| Excitation force | 28kN |
| Power | 11hp / 3600rpm |
| Steel wheel width | 708mm |
| Steel wheel diameter | 400mm |
| Operating weight | 830kg |
| Drive form | Hydraulic pump and motor |
| Vibration form | Hydraulic Vibration |
- High flexibility
- Controllable costs
- 50% fewer compaction passes
The handheld double-drum roller is a compaction device for small projects, mainly used for road compaction in narrow spaces or complex terrains. Its key feature: dual-drum drive (both front and rear) with vibration, enabling efficient compaction of asphalt, sand, backfill, etc. Compared to small single-drum rollers, its combination of vibration and static pressure achieves double the compaction effect in one pass.
| HIR-YLS708 Walking Double Wheel Roller | |
|---|---|
| Walk | |
| Speed | 0-4km/h |
| Gradeability | 30% |
| Compaction | |
| Nominal amplitude | 0.5mm |
| Vibration frequency | 75Hz |
| Excitation force | 28kN |
| Water tank capacity | 40L |
| Hydraulic oil tank capacity | 10L |
| Work | |
| Drive form | Hydraulic pump and motor |
| Vibration form | Hydraulic Vibration |
| Engine | |
| Model | Changchai 192 / Briggs & Stratto / Honda GX390 / Koop 192 |
| Type | Air-cooled diesel engine |
| Power | 11hp / 3600rpm |
| Fuel tank capacity | 5.5L |
| Dimension | |
| Steel wheel width | 708mm |
| Steel wheel diameter | 400mm |
| Total length (Flatten the handrail) | 1400mm |
| Total width | 850mm |
| Total height (Stand up the handrail) | 1950mm |
| Weight | |
| Net weight | 805kg |
| Operating weight | 830kg |
