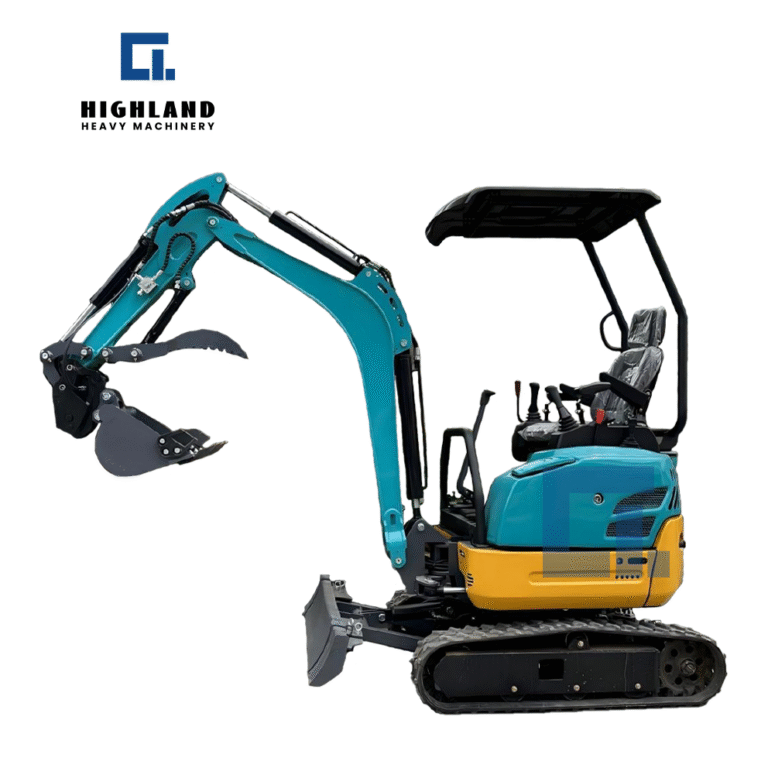

HIW-20 Mini Excavator

Basic Parameters :

Bucket capacity0.05m³
Max digging height3200mm
Max digging depth2200mm
Swing angle360°
Climbing gradient30°
Bucket digging force16.5KN
  • Flexible in operation

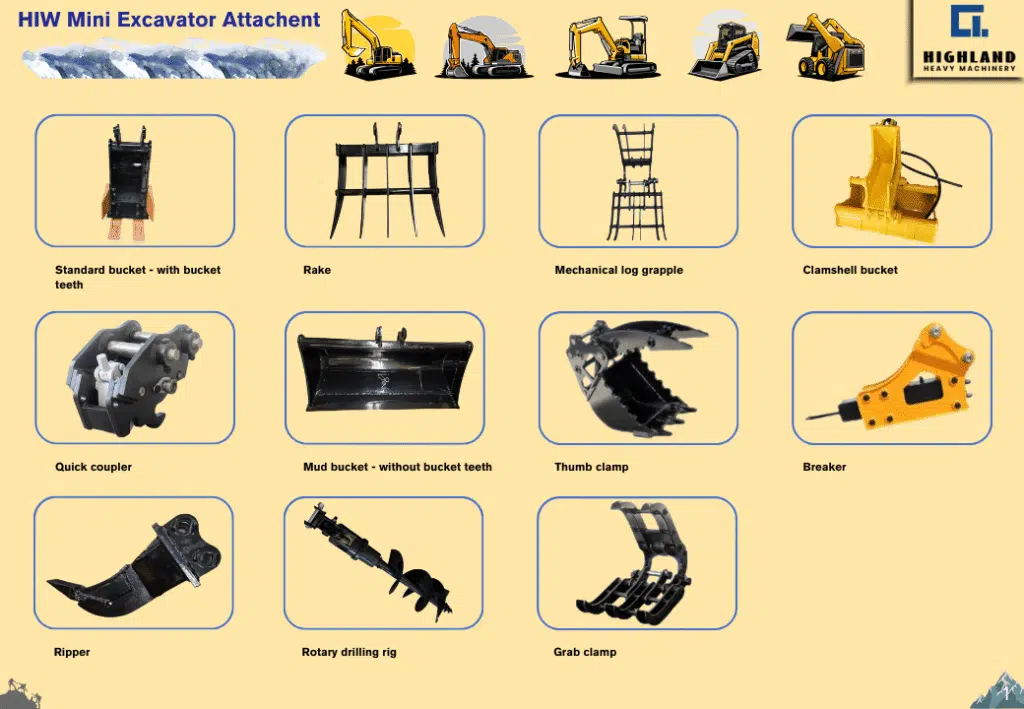

  • Various attachments are available as options
  • Excellent energy efficiency

Compared with large excavators, the advantages of mini excavators lie in: easy operation, flexible relocation (can be transported by small trucks), low ground pressure (reducing damage to the site), and low energy consumption. They are suitable for small and medium-sized operation needs and are commonly used equipment in urban micro-engineering, household, or small-scale construction.

Its core functions are similar to those of ordinary excavators, with capabilities such as excavation, loading, crushing, and bulldozing. However, due to its small size and high flexibility, it is particularly suitable for working in confined spaces, such as:
– Indoor renovation, basement construction, and other enclosed or low spaces;
– Courtyard renovation, landscaping, small-scale farmland arrangement;
– Pavement renovation, pipeline laying (e.g., small water pipes, cable trench excavation) in municipal engineering;
– Foundation excavation, short-distance material handling in small construction sites, etc.

Technical Parameter
1ModelHI-20
2Operation weight1500kg
3EngineYanmar / Kubota
4Power10.3kW
5Bucket capacity0.05m³
6Rotation speed9r/min
7Overall dimension(L*W*H)3250mm*1100mm*2300mm
8Crawler grounding length1300mm
9Crawler width180mm
10Max digging height3200mm
11Max discharge height2300mm
12Max digging depth2200mm
13Max digging radius3360mm
14Mini turning radius1350mm
15Platform clearance to ground370mm
16Swing angle360°
17Climbing gradient30°
18Bulldozer max depth190mm
19Bulldozer Max raising height260mm
20Walking speed0-3km/h
21Bucket digging force16.5KN
22Hydraulic system press16MPa
23Bucket width430mm
24CanopyIncluded
