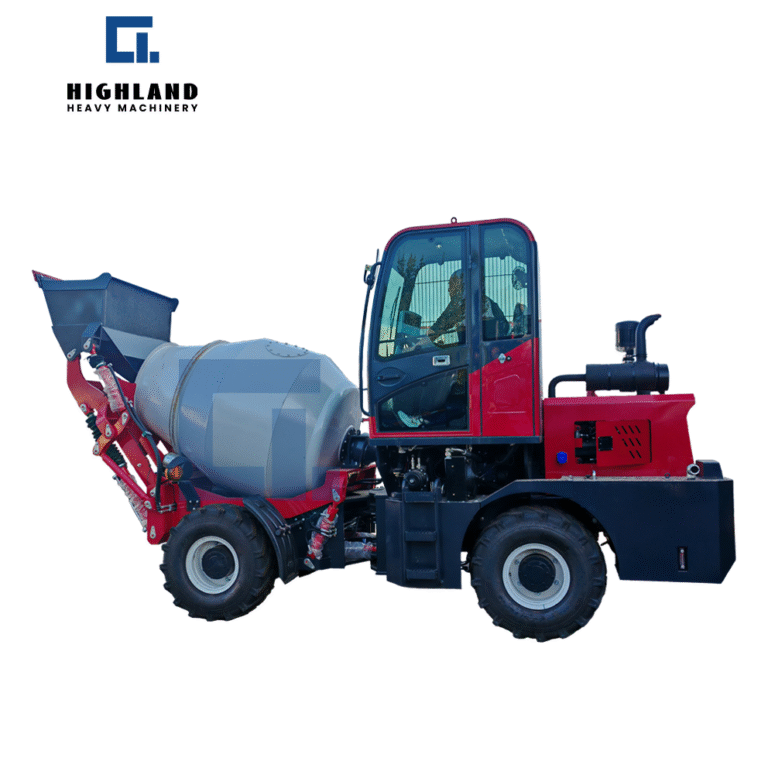

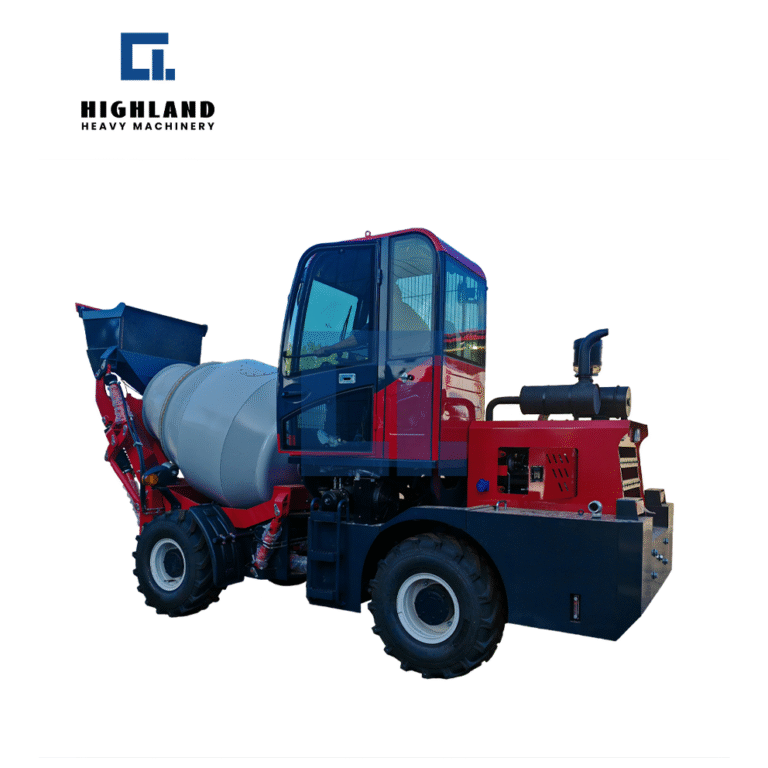

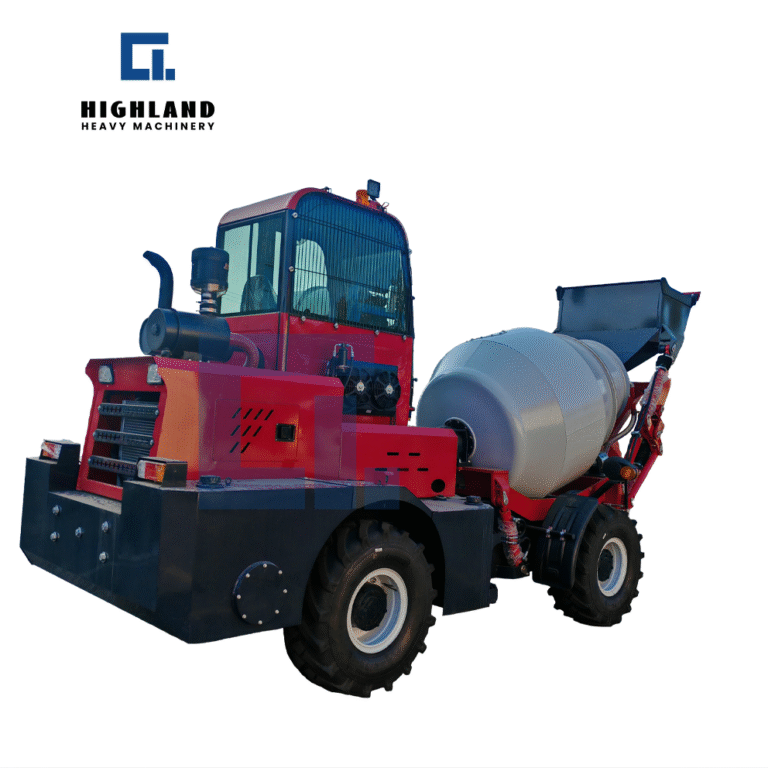

HIZ-1.5 Self-loading Concrete Mixer
Basic Parameters :
Concrete Output / Drum | 1.5m³ |
Concrete Output / Hour | 6m³ |
Driving Type | 4WD |
Maximum Speed | 35 Km/h |
Maximum Climbing Angle | 40° |
- Unique dual-pump system
- Automatic loading and unloading
- Strong off-road capability
- Labor cost saving
- Stable working system
- Good fuel economy
Efficiency tool for small and medium-sized projects
It does not rely on external loaders or other equipment. Instead, it can independently complete the grabbing, lifting and unloading of raw materials such as sand, gravel and cement through its own shoveling device, and directly feed them into the mixing drum. Meanwhile, it is equipped with a water tank and a metering system, which can automatically add water in proportion to realize on-site mixing of concrete. The mixing drum rotates continuously to keep the materials uniform and prevent solidification. When unloading, the concrete is discharged by reversing the drum body.
1.5m³ Self-loading concrete mixer | |
---|---|
Vehicle Parameters | |
Overall Dimensions(L x W x H) | 6430mm x 2350mm x 2920mm |
Wheelbase | 2440mm |
Gross Vehicle Weight | 4500kg |
Driving Type | 4WD |
Maximum Speed | 35 Km/h |
Maximum Climbing Angle | 40° |
Minimum Ground Clearance | 270mm |
Engine | |
Model | Yunnei 490 Turbocharged engine |
Rated Power | 58kW |
Transmission | |
Model | JBJ-278 Power shift transmission |
Gearshift | 4 forward + 4 reverse |
Hydraulic System | |
Reducer | 1.5F-100K |
Moter | BMS-160 |
Maintenance Filling Quantity | |
Fuel Tank | 120L |
Hydraulic Oil Tank | 120L |
Engine Oil Tank | 12L |
Water Supply | |
Water Tank | 500L |
Water Supply | Time relay |
Mixing and Output | |
Drum Geometric Capacity | 1.93m³ |
Drum Rotational Speed | 20rpm |
Concrete Output / Drum | 1.5m³ |
Concrete Output / Hour | 6m³ |
Concrete Daily Output / 8 Hours | 48m³ |
The double-conical drum has a double spiral agitator screw and a convex bottom. |
