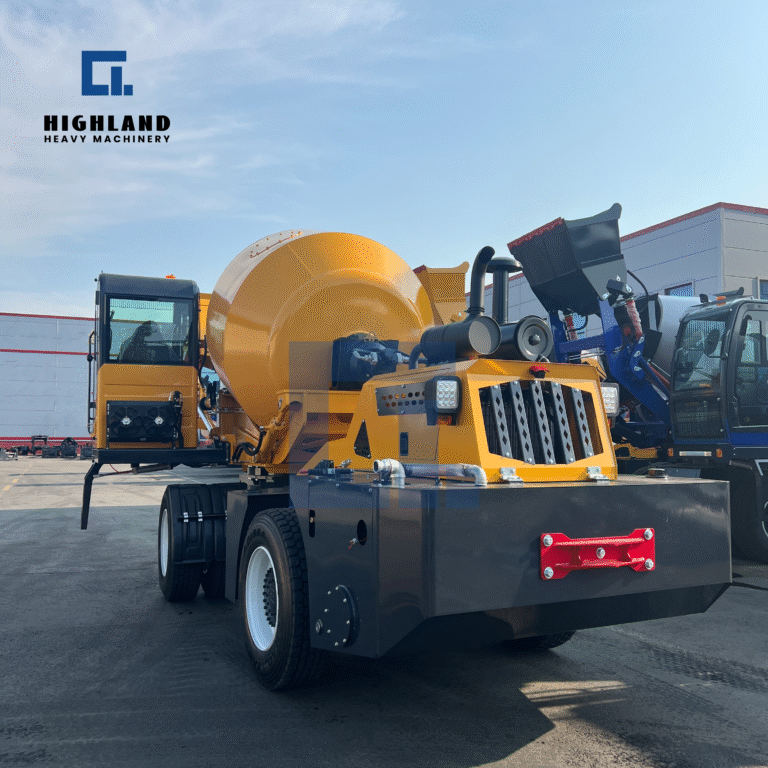

HIZ-5.0 Self-loading Concrete Mixer

Basic Parameters :

Concrete Output / Drum5.0m³
Concrete Output / Hour20m³
Driving Type4WD
Maximum Speed35 Km/h
Maximum Climbing Angle40°
  • Unique dual-pump system
  • Automatic loading and unloading
  • Strong off-road capability
  • Labor cost saving
  • Stable working system
  • Good fuel economy

Efficiency tool for small and medium-sized projects

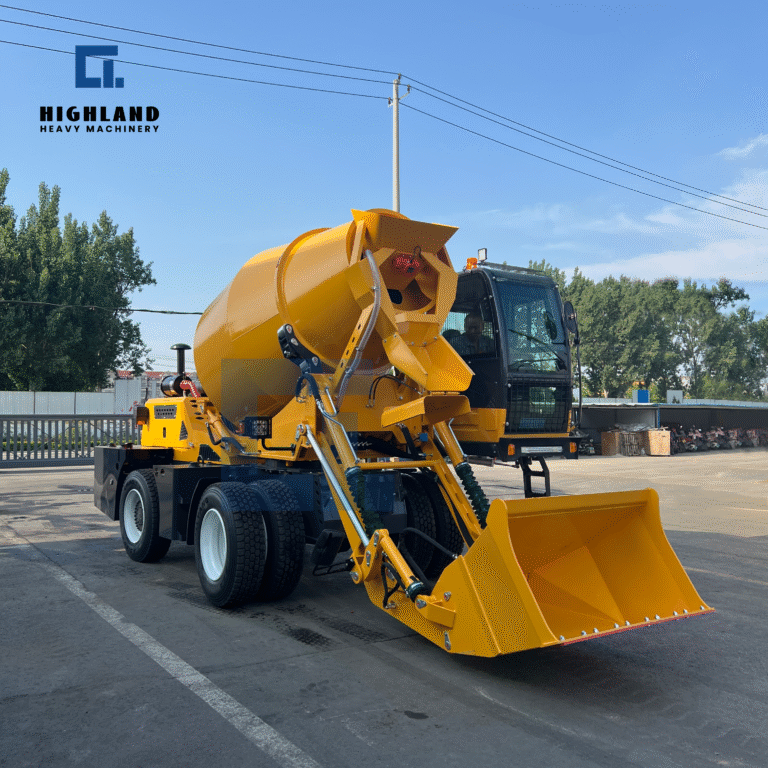

It does not rely on external loaders or other equipment. Instead, it can independently complete the grabbing, lifting and unloading of raw materials such as sand, gravel and cement through its own shoveling device, and directly feed them into the mixing drum. Meanwhile, it is equipped with a water tank and a metering system, which can automatically add water in proportion to realize on-site mixing of concrete. The mixing drum rotates continuously to keep the materials uniform and prevent solidification. When unloading, the concrete is discharged by reversing the drum body.

5m³ Self-loading concrete mixer
Vehicle Parameters
Overall Dimensions(L x W x H)8778mm x 3050mm x 3640mm
Wheelbase
2860mm
Gross Vehicle Weight10500kg
Driving Type4WD
Maximum Speed35 Km/h
Maximum Climbing Angle
40°
Minimum Ground Clearance
300mm
Engine
ModelWeichai 6105 Turbocharged engine
Rated Power
92kW
Transmission
ModelJBJ-428 Power shift transmission
Gearshift4 forward + 4 reverse
Hydraulic System
Reducer5F-300B
MoterA2FM63
Maintenance Filling Quantity
Fuel Tank150L
Hydraulic Oil Tank150L
Engine Oil Tank22L
Water Supply
Water Tank900L
Water SupplyTime relay
Mixing and Output
Drum Geometric Capacity8.28m³
Drum Rotational Speed20rpm
Concrete Output / Drum5m³
Concrete Output / Hour20m³
Concrete Daily Output / 8 Hours160m³

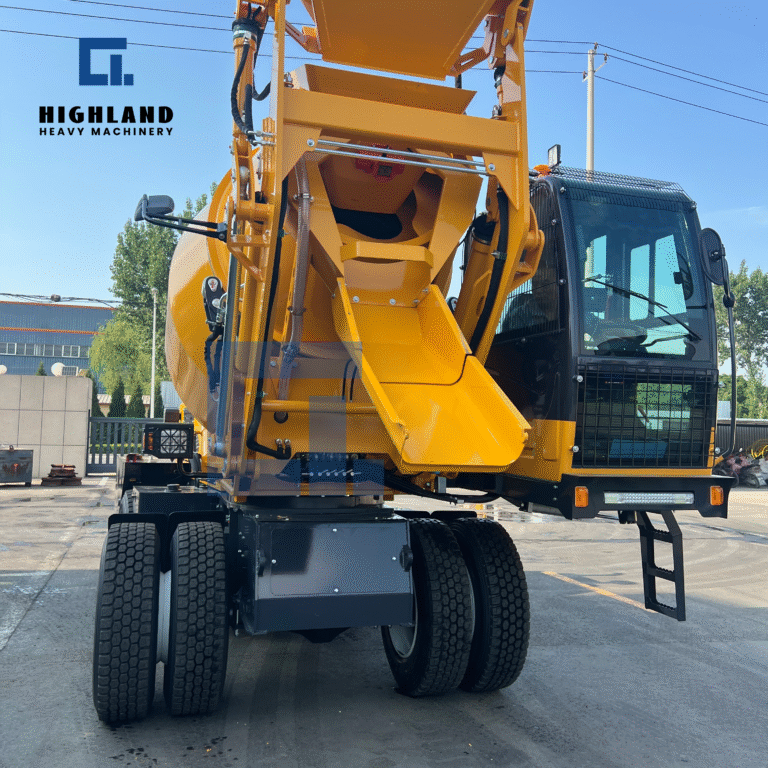

The double-conical drum has a double spiral agitator screw and a convex bottom.
